Nylon Liquid Filter Bag
The nylon liquid filter bag is made from durable nylon monofilament mesh, providing consistent pore geometry and a precise filtration cut point. Its woven structure enables effective surface filtration, allowing particles to be captured on the mesh surface for easy cleaning and reliable reuse. It is well suited for liquid filtration in paint, food, and coating lines where stable flow and consistent particle separation are required.
Build Your Configuration
Full Spec Sheet
| Fiber Type | Monofilament nylon 6/6 |
| Weave Pattern | Plain weave / twill weave |
| Pore Geometry | Square aperture for a precise cut point |
| Filtration Mechanism | Surface filtration by precision mesh sieving |
| Cleanability | Washable and reusable in compatible liquid filtration service |
Dimensions & Flow Rates
| Size | Diameter | Length | Max Flow | Max dP |
|---|---|---|---|---|
| #1 | 180 mm (7 in) | 410 mm (16 in) | 75 L/min | 5.5 bar |
| #2 | 180 mm (7 in) | 810 mm (32 in) | 150 L/min | 5.5 bar |
| #3 | 105 mm (4 in) | 230 mm (9 in) | 20 L/min | 5.5 bar |
| #4 | 105 mm (4 in) | 380 mm (15 in) | 40 L/min | 5.5 bar |
| #5 | 150 mm (6 in) | 560 mm (22 in) | Contact us | 5.5 bar |
Flow rates are guidelines at 1 bar differential pressure with water at 20 C. Actual capacity varies with viscosity, micron rating, and particle load.
How It Is Built
Monofilament mesh body
The monofilament mesh body is woven from single-strand nylon filament to create stable, uniform apertures for consistent filtration performance through repeated operating cycles.
Reinforced sewn seams
Each stitched seam is reinforced with durable nylon thread to help minimize particle bypass and maintain bag strength under routine pressure and flow conditions.

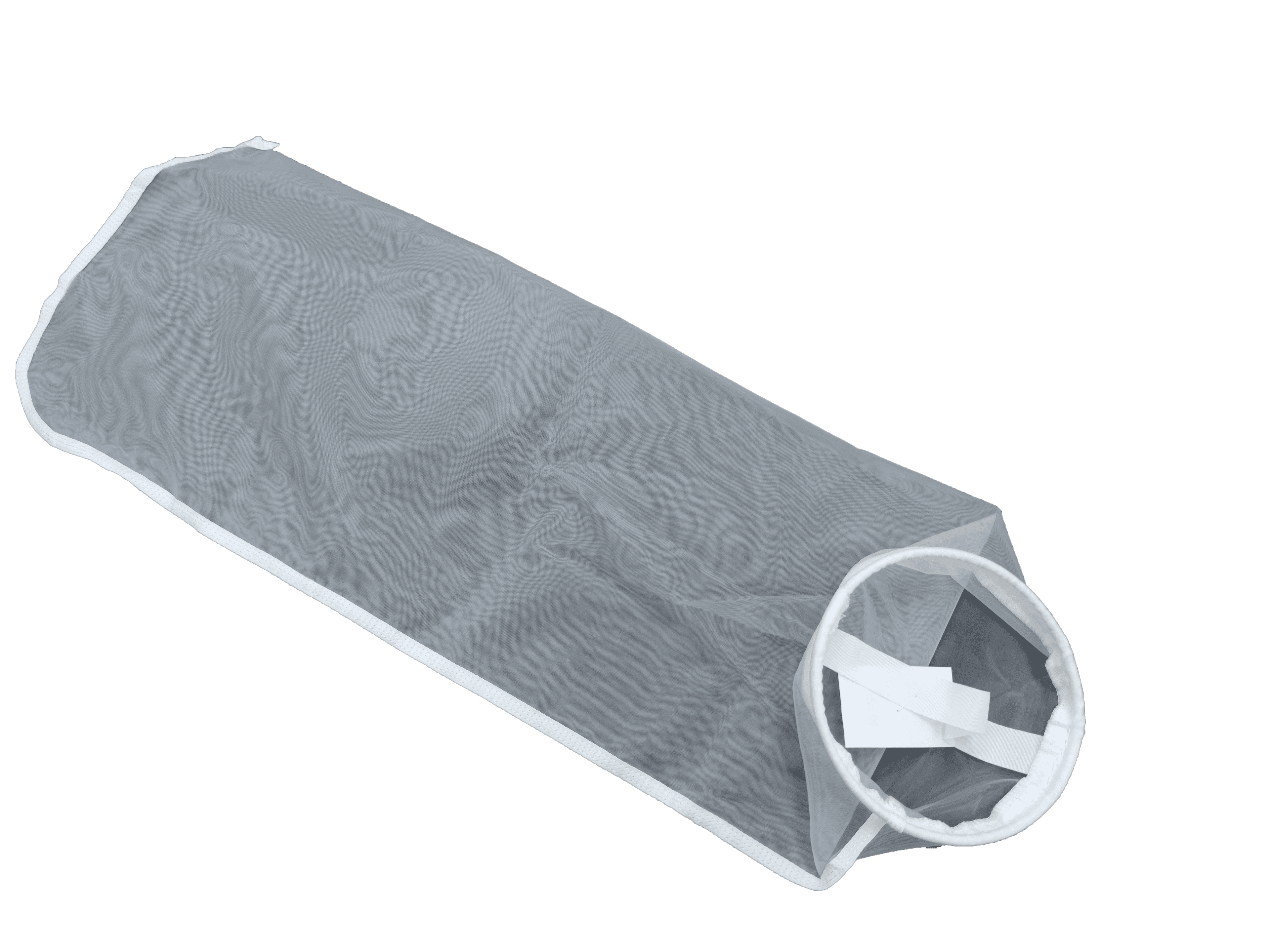

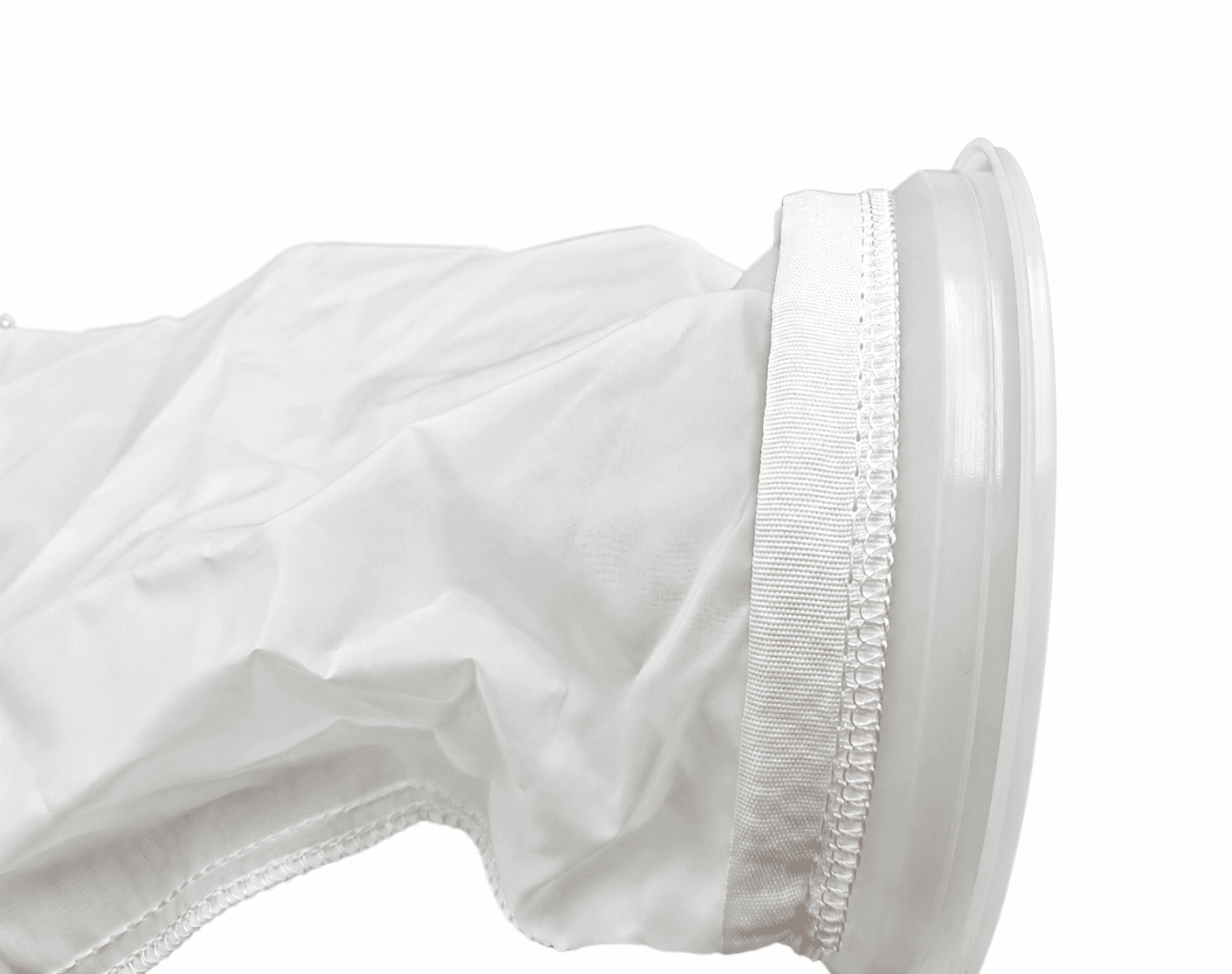

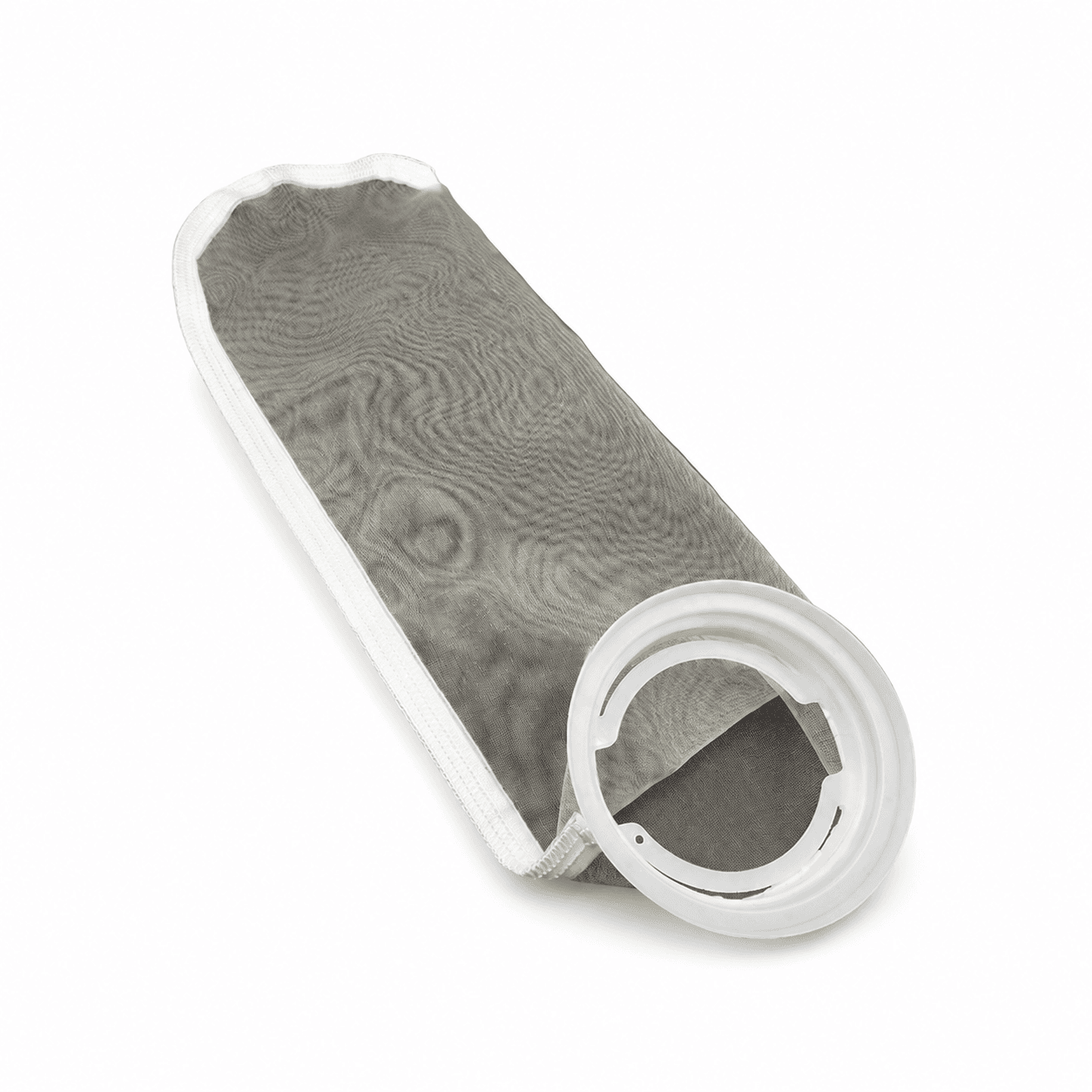

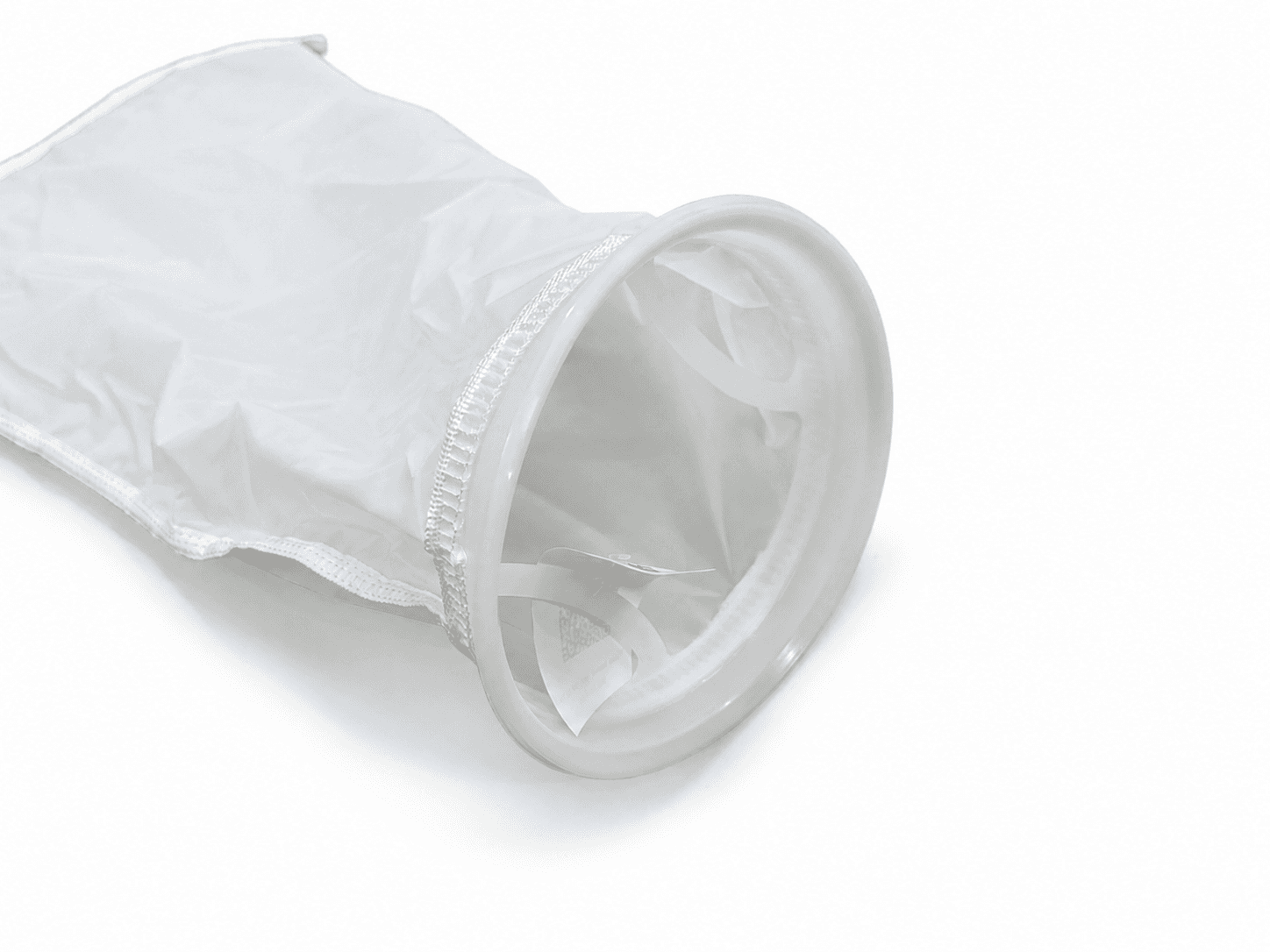

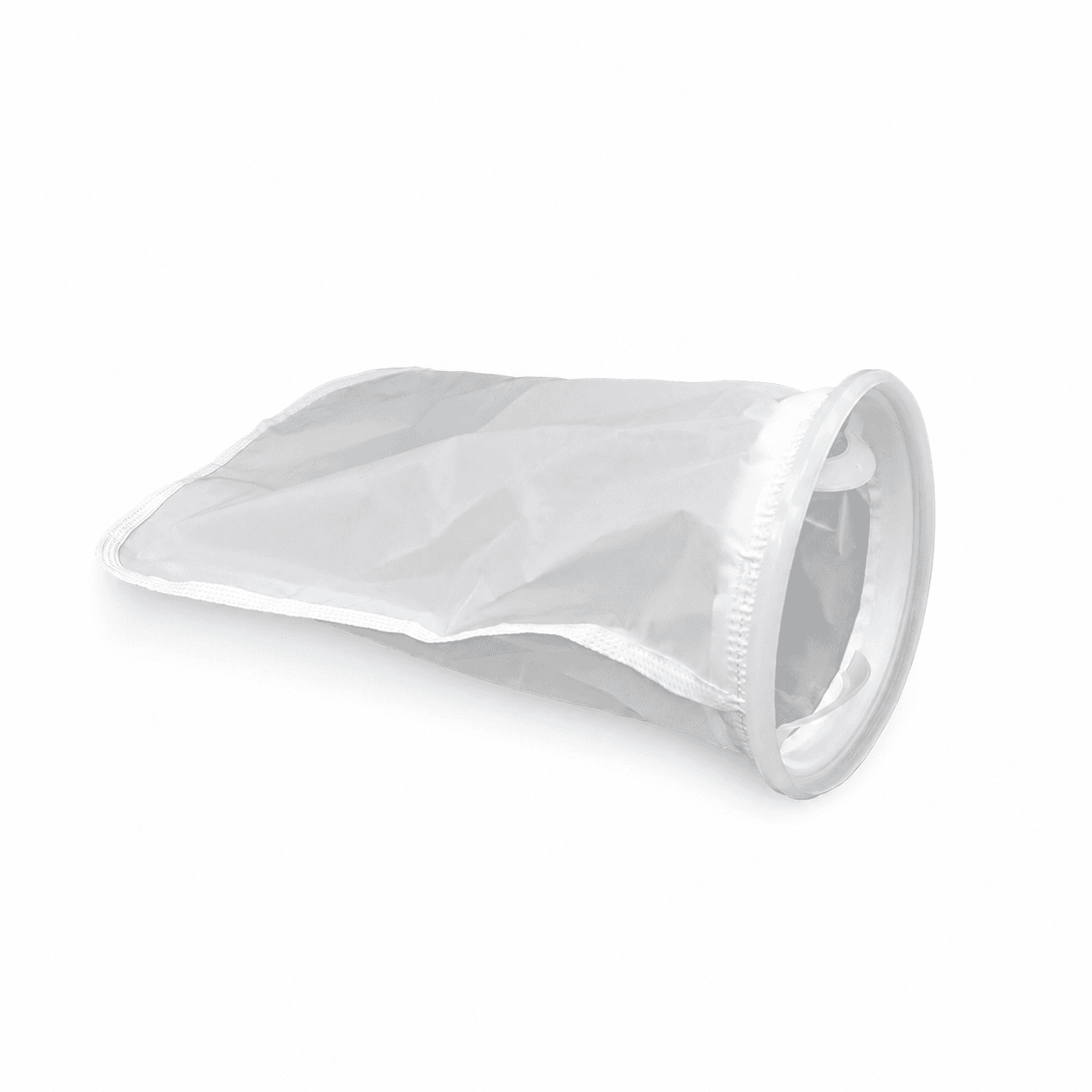

Plastic ring and stainless steel ring options

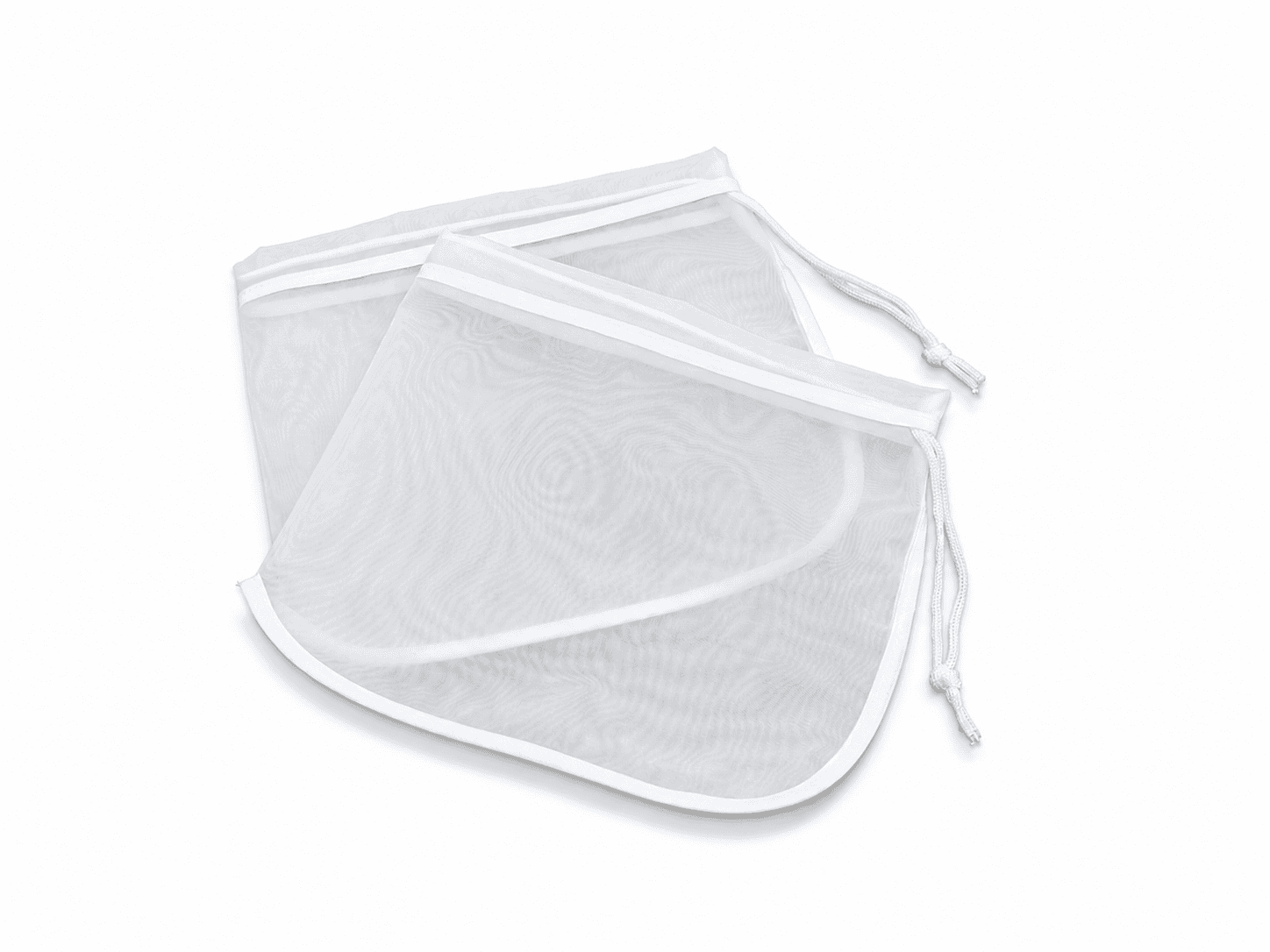

Choose a plastic ring, stainless steel ring, or drawstring closure to match different filter housings, operating conditions, and cleaning requirements.
Food-contact capable materials
FDA-compliant nylon mesh and compatible collar materials are available for food, beverage, and general sanitary filtration applications.
Industries & Use Cases
Food & Beverage
- *Fruit juice clarification
- *Edible oil polishing
- *Syrup straining
- *Beverage bottling pre-filtration
Paint & Coatings
- *Pigment capture
- *Resin straining
- *Ink filtration
- *Varnish polishing
Chemical
- *Solvent filtration
- *Polymer solution cleanup
- *Catalyst fines removal
- *Cooling water side-stream filtration
Pharmaceutical
- *Process liquid pre-filtration
- *Equipment rinse water filtration
- *Buffer preparation pre-filtration
- *CIP solution pre-filtration
Industrial Reverse Osmosis
- *RO feed water pre-filtration
- *Suspended solids removal
- *Membrane protection
- *Process water clarification
Drinking Water
- *Raw water pre-filtration
- *Suspended particle removal
- *Water treatment system protection
- *Bottling line pre-filtration
Wastewater Treatment
- *Suspended solids removal
- *Process water recovery
- *Tertiary treatment pre-filtration
- *Downstream membrane protection
Seawater Desalination
- *Seawater intake pre-filtration
- *Coarse suspended solids removal
- *RO membrane pretreatment
- *Downstream equipment protection
MADE TO YOUR SPECIFICATION
Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.
Submit Your Specification ->Documentation
Yes. A nylon liquid filter bag is washable and reusable in compatible applications. The monofilament mesh can be rinsed, washed, or backflushed between batches and reused until the mesh is damaged or the original flow rate can no longer be restored.
