INCE supplies filter mesh in silk, nylon, and polyester materials for particle separation, liquid straining, powder screening, and custom filter components. Common options include 1 micron filter mesh, 2 micron filter mesh, 5 micron filter mesh, high-mesh-count fabrics, roll goods, cut sheets, discs, tubes, and sewn mesh parts.
Choose filter mesh by material, mesh opening, thread diameter, open area, roll width, temperature resistance, chemical compatibility, and finished part format. Silk mesh is suitable for fine screening and specialty processes, nylon filter mesh offers strong reusable surface filtration, and polyester filter mesh provides stable dimensional performance for many industrial filtration uses.

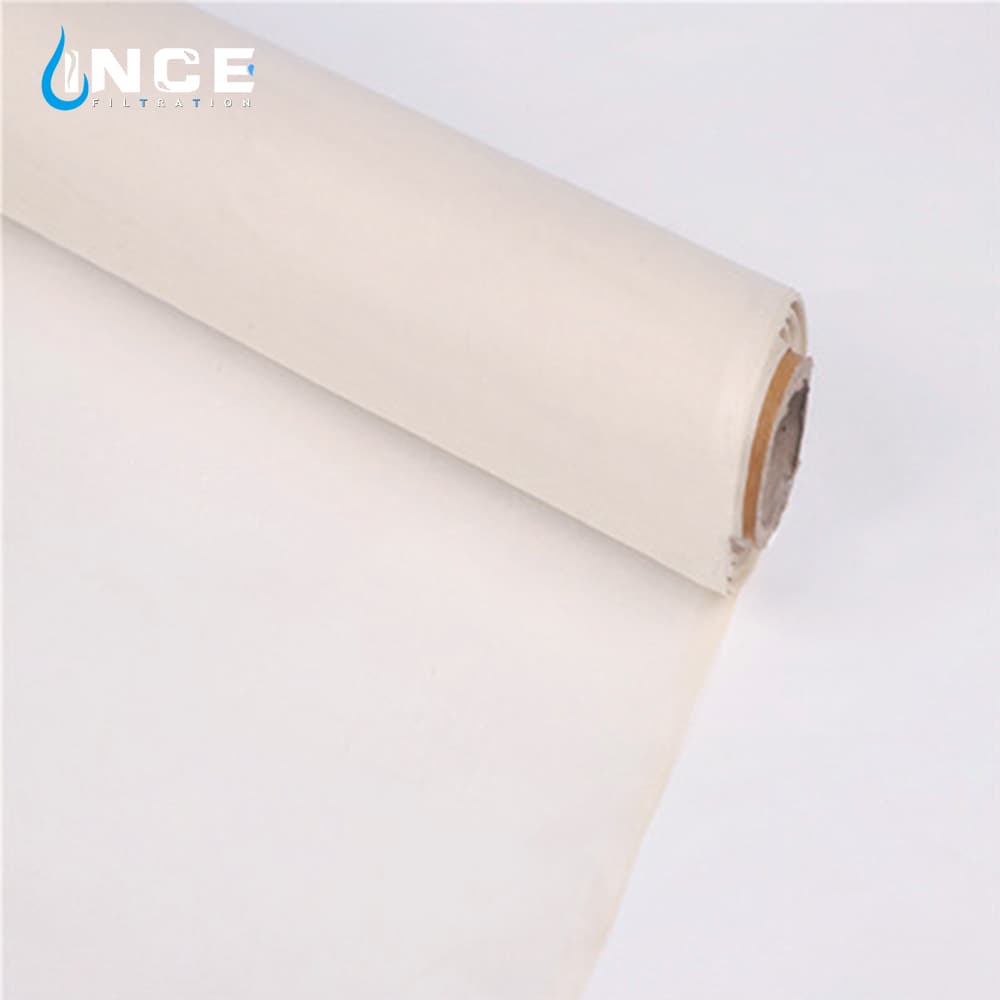

Silk filter mesh for fine screening, specialty filtration, printing, food processing, and custom mesh parts where soft handling and fine mesh construction are required.

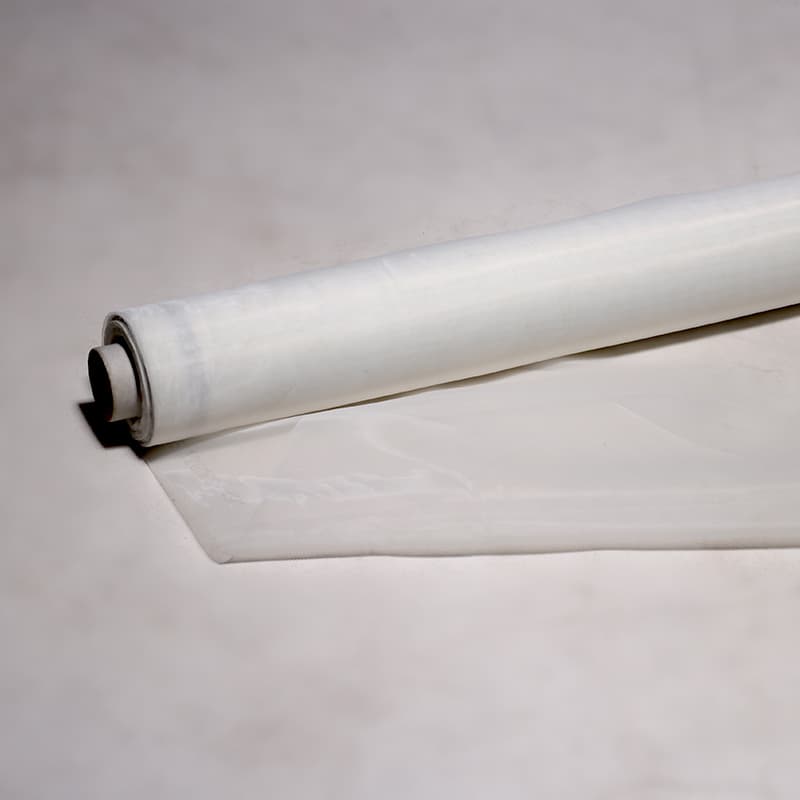

Nylon filter mesh made from PA monofilament for reusable surface filtration, liquid straining, food processing, paint filtration, and custom mesh fabrication.

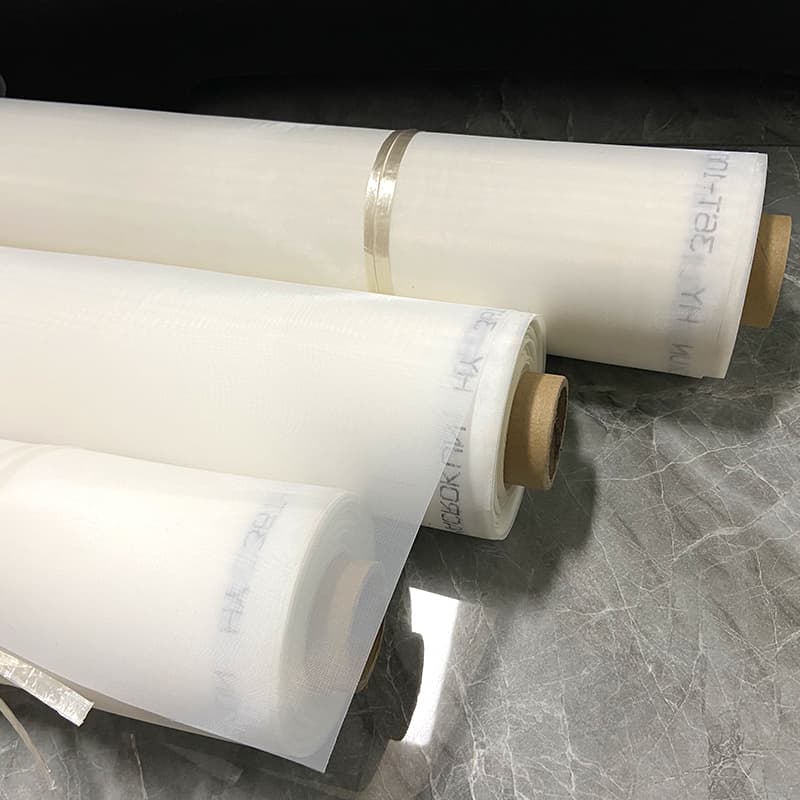

Polyester filter mesh made from PET monofilament for stable liquid filtration, powder screening, water treatment, chemical processing, and custom mesh parts.
| Specification | Silk Filter Mesh | Nylon Filter Mesh | Polyester Filter Mesh |
|---|---|---|---|
| Material | Natural silk | PA6 / PA66 monofilament | PET monofilament |
| Filtration Type | Fine surface screening | Reusable surface filtration | Stable surface filtration |
| Opening Range | Fine mesh and specialty ratings | 1-2000 micron options | 1-2000 micron options |
| Dimensional Stability | Moderate | Good | Very good |
| Water Resistance | Moderate | Good | Very good |
| Typical Format | Rolls, sheets, custom pieces | Rolls, discs, bags, tubes | Rolls, discs, sleeves, panels |
| Typical Use | Fine screening, printing, specialty filtration | Food, paint, liquid filtration, particle capture | Water treatment, powder screening, chemical filtration |
Select the mesh opening according to the particle size you need to retain. Low ratings such as 1 micron filter mesh, 2 micron filter mesh, and 5 micron filter mesh require careful review of flow, pressure drop, and cleaning method.
Choose nylon filter mesh for washable surface filtration, polyester filter mesh for dimensional stability, and silk filter mesh for selected fine screening or specialty process requirements.
Filter mesh can be supplied as roll goods, cut sheets, discs, tubes, sleeves, or sewn mesh components. Confirm width, length, shape, seam style, and tolerance before production.
Check liquid chemistry, temperature, cleaning cycle, mechanical tension, and required documentation so the selected mesh fabric performs consistently in the installed system.
Filter mesh can be supplied as standard roll goods or converted into finished parts for OEM buyers, distributors, equipment builders, and filtration projects. Custom options include micron rating, mesh count, thread diameter, roll width, sheet size, disc diameter, tube size, edge treatment, and packaging.
Submit Mesh SpecsNot at the beginning. These are best handled as specification options under the filter mesh product pages unless a specific micron rating has enough demand, unique applications, and enough original content to support a separate landing page.
Describe your application, flow rate, and micron target. Our technical team responds within one business day with a recommendation and pricing.
