INCE is an industrial filter housing supplier and cartridge filter housing manufacturer supporting stainless steel filtration solutions for water treatment, food and beverage, chemical processing, coatings, pharmaceuticals, and other process-liquid systems. We help buyers select housing configurations based on flow rate, pressure, fluid compatibility, connection standard, and installation requirements.
Housing selection starts with the liquid, contaminant load, target filtration level, flow rate, operating pressure, temperature, and maintenance plan. INCE supports bag, cartridge, and multi-element configurations for new filtration systems, equipment upgrades, and replacement projects.

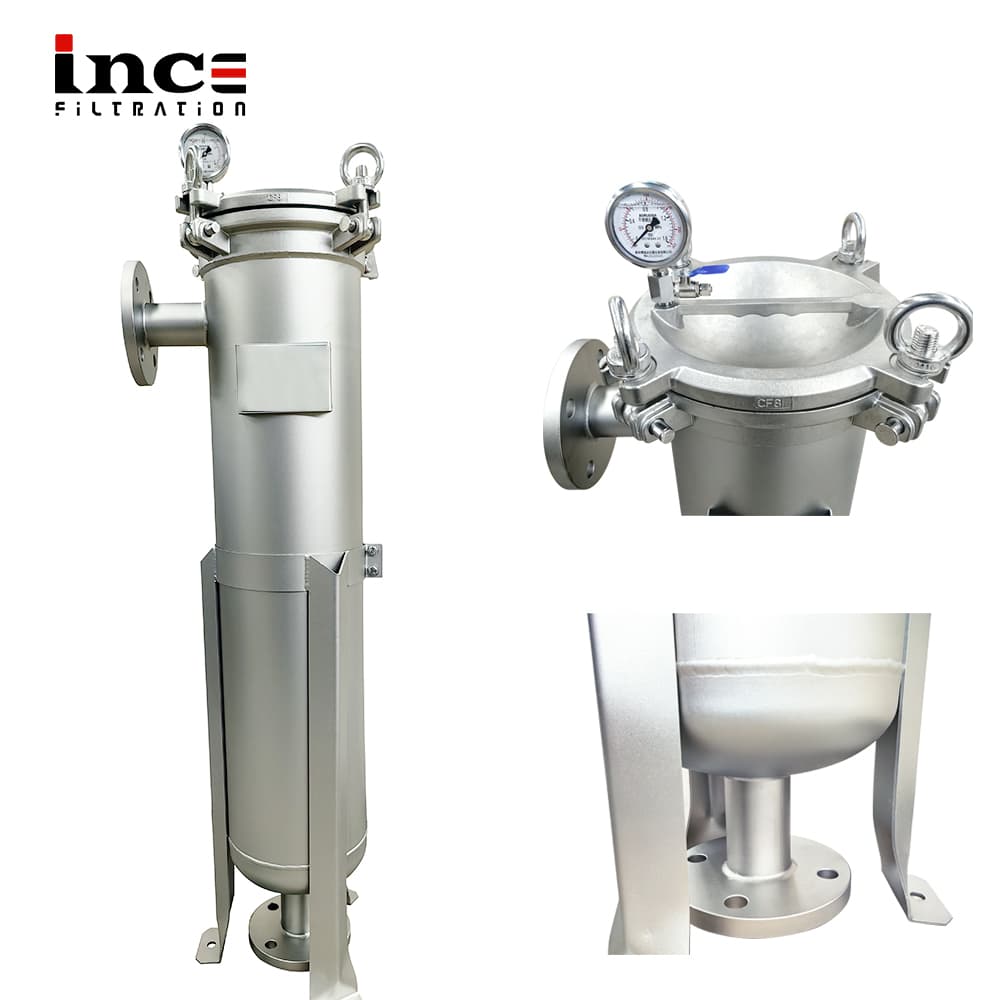

Stainless steel bag filter housing for industrial liquid filtration, high dirt loading, simple bag change-out, and water, chemical, coatings, food, and process liquid applications.

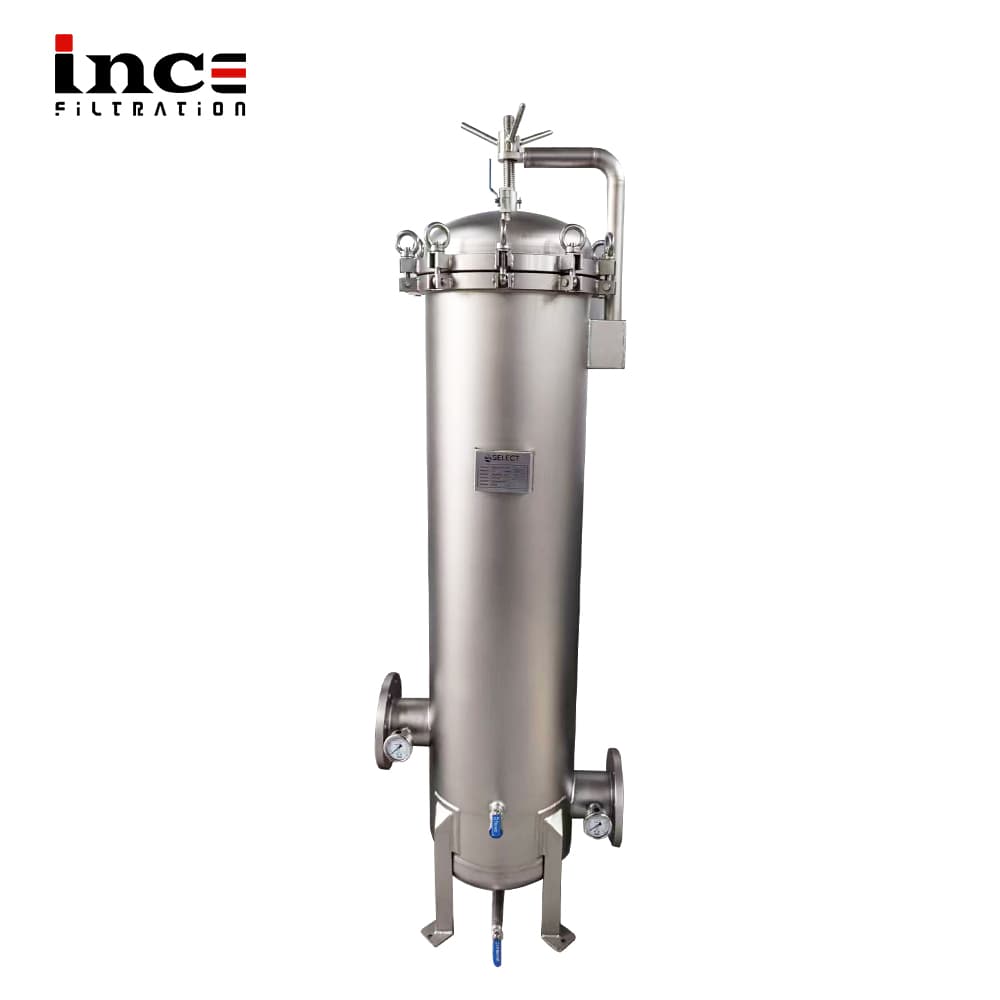

Stainless steel cartridge filter housing for fine liquid filtration, RO pretreatment, process water polishing, and industrial cartridge filtration systems.
| Selection Point | Bag Filter Housing | Cartridge Filter Housing | Multi-Bag / Custom Housing |
|---|---|---|---|
| Typical Filtration Duty | Bulk solids removal and process liquid clarification | Fine filtration and downstream equipment protection | High-flow or project-specific filtration duties |
| Available Material | SS304 or SS316L | SS304 or SS316L | SS304, SS316L, or project-specified stainless steel |
| Best For | Processes with moderate to high solids loading | Processes requiring finer retention or a compact footprint | Larger systems where flow capacity or service time must be increased |
| Common Applications | Water, coatings, chemicals, oils, and food-process liquids | RO pretreatment, process water, beverages, and final polishing | Cooling water, plant utilities, transfer lines, and central filtration systems |
| Connection Options | Threaded, flange, clamp connections | Threaded, flanged, clamp, or sanitary connections | Flanged or drawing-based nozzle arrangements |
| Closure and Access | Clamp, swing-bolt, or quick-opening cover | Clamp, bolted cover, or sanitary closure | Swing-bolt cover, davit arm, or project-specific access design |
| Seal Options | EPDM, silicone, FKM, or PTFE, subject to process compatibility | EPDM, silicone, FKM, or PTFE, subject to process compatibility | Specified according to fluid chemistry, temperature, and cleaning method |
| Customization Scope | Dimensions, connections, accessories, and support arrangement | Cartridge count, length, end connection, and internal layout | Flow-based vessel layout, nozzle positions, supports, and skid integration |
Identify the process fluid, expected contaminants, solids loading, target micron rating, and whether the housing will be used for pretreatment, clarification, polishing, or equipment protection.
Provide normal and peak flow rates, operating pressure, design pressure, working temperature, and any expected pressure surges. These values affect vessel size, element quantity, wall thickness, and closure selection.
Bag housings are commonly used where dirt loading is higher and change-out simplicity matters. Cartridge housings suit finer filtration and compact systems. Select SS304 or SS316L only after reviewing corrosion, cleaning, and hygiene requirements.
Confirm inlet and outlet orientation, connection standard, available floor space, cover-opening clearance, drain and vent positions, support method, lifting access, and compatibility with the existing pipeline or skid.
INCE supports OEM buyers, distributors, contractors, and system integrators with housing configurations developed from process data, drawings, or replacement requirements. Standard designs can be adapted for element quantity, material grade, connections, closure style, surface finish, accessories, installation layout, and export documentation.
Submit SpecsProvide the liquid type, contaminants, target micron rating, normal and peak flow, operating pressure, design pressure, temperature, connection standard, preferred filter element, available installation space, and any cleaning or hygiene requirements.
Describe your application, flow rate, and micron target. Our technical team responds within one business day with a recommendation and pricing.
