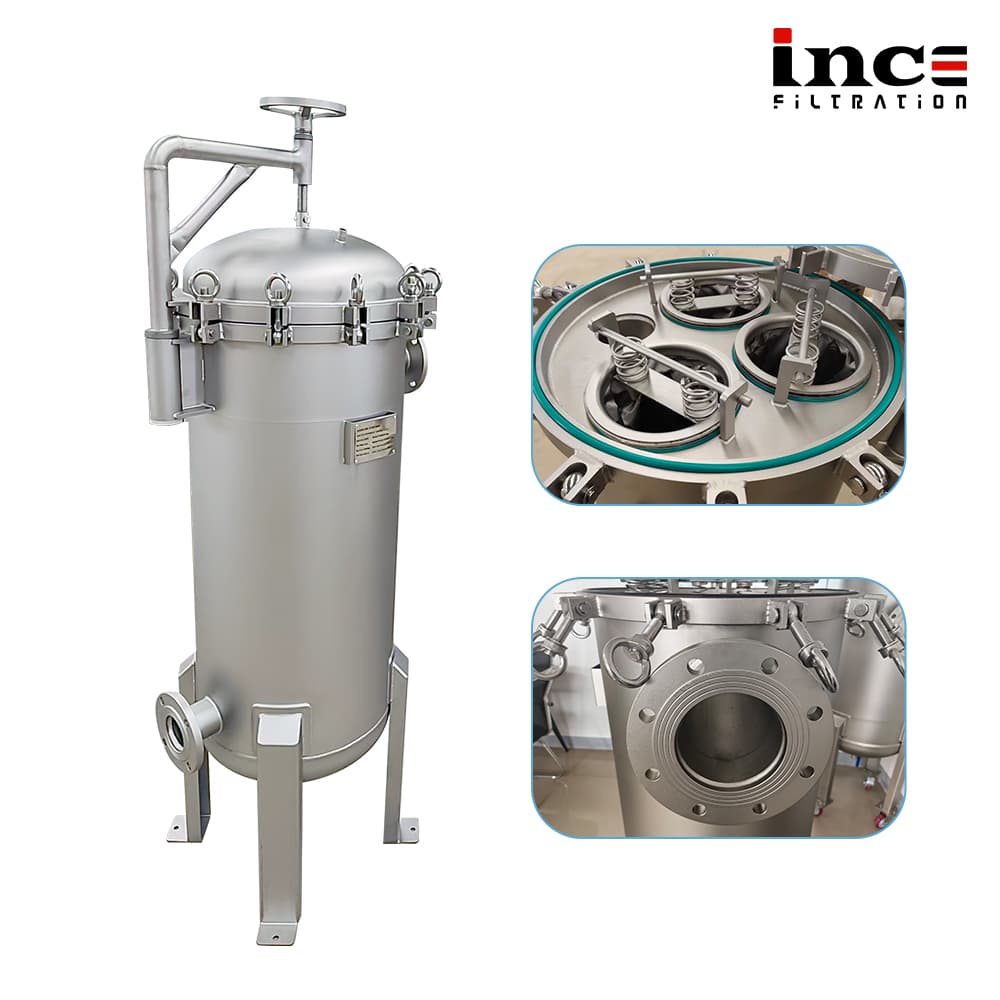

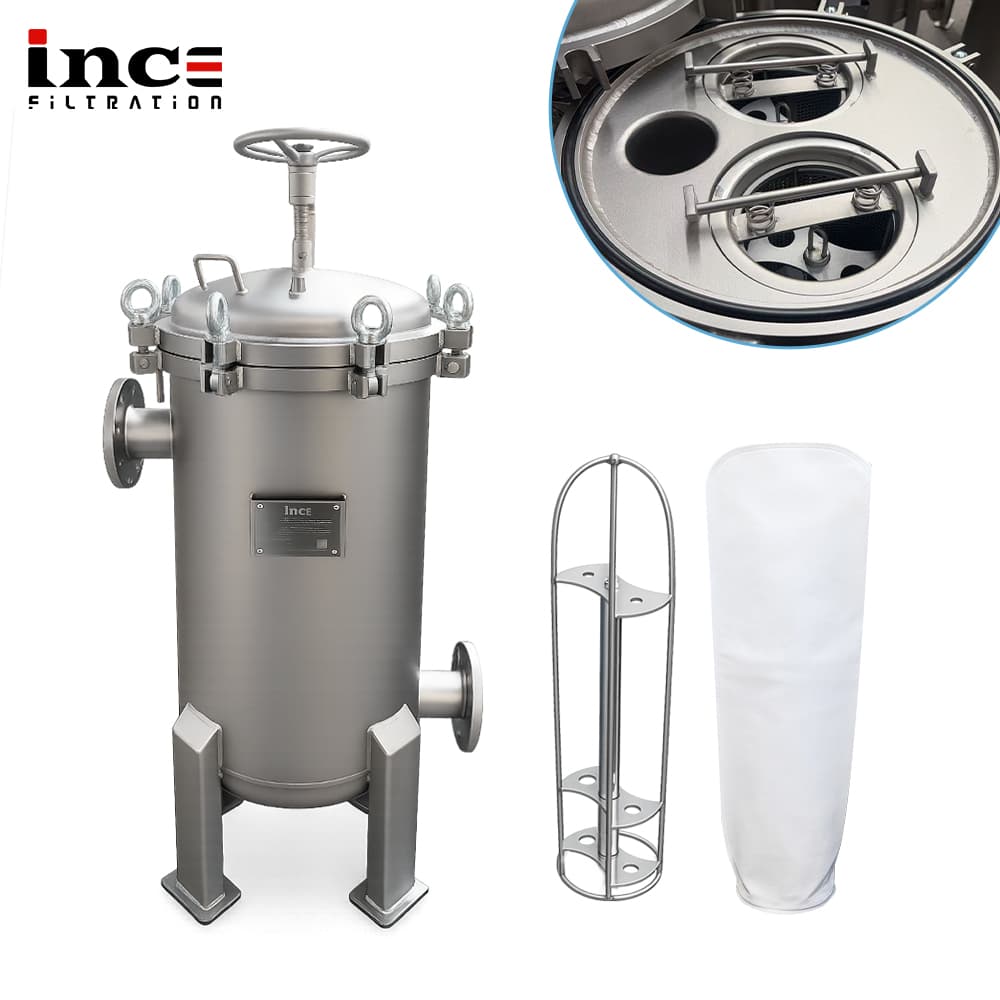

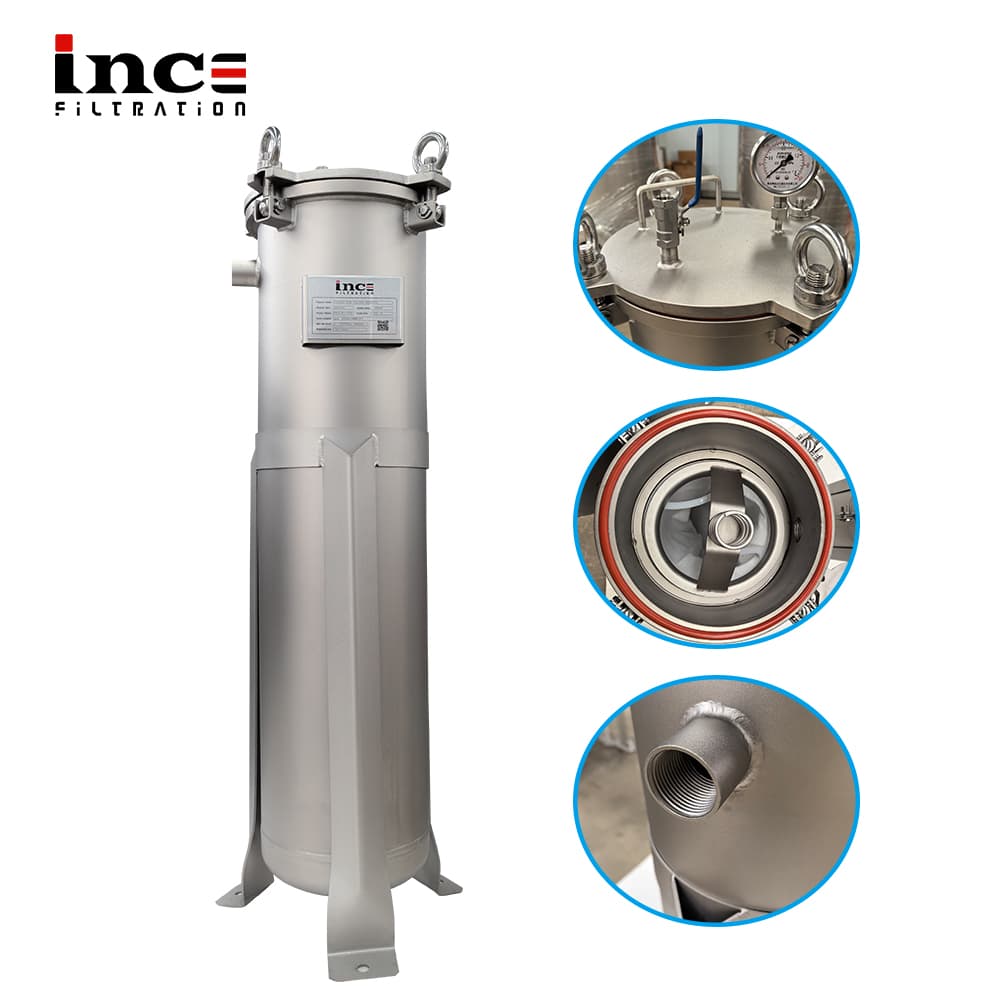

Stainless Steel Bag Filter Housing
The stainless steel bag filter housing is designed for industrial liquid filtration where flow capacity, dirt-holding volume, and easy maintenance are important. Single-bag housings fit compact process lines and point-of-use filtration, while multi-bag housings support higher flow systems in water treatment, chemical processing, coatings, food and beverage utilities, process water, and plant circulation systems.
Build Your Configuration
Full Spec Sheet
| Body Material | SS304 or SS316L stainless steel |
| Basket Material | Single or multiple stainless steel support baskets |
| Seal Materials | EPDM, silicone, Viton, PTFE |
| Surface Finish | Industrial polish or project-specified finish |
| Accessories | Vent, drain, pressure gauge, legs, lifting handle, davit arm by request |
Dimensions & Flow Rates
| Size | Diameter | Length | Max Flow | Max dP |
|---|---|---|---|---|
| Single Bag Size 1 | Approx. 7 in / 180 mm bag | Approx. 16 in / 410 mm bag | Contact us | Contact us |
| Single Bag Size 2 | Approx. 7 in / 180 mm bag | Approx. 32 in / 810 mm bag | Contact us | Contact us |
| Multi-Bag 2 Bags | Usually 2 x Size 2 bags | Each approx. 7 x 32 in / 180 x 810 mm | Contact us | Contact us |
| Multi-Bag 3 Bags | Usually 3 x Size 2 bags | Each approx. 7 x 32 in / 180 x 810 mm | Contact us | Contact us |
| Multi-Bag 4 Bags | Usually 4 x Size 2 bags | Each approx. 7 x 32 in / 180 x 810 mm | Contact us | Contact us |
| Custom Multi-Bag | Drawing-based | Drawing-based | Contact us | Contact us |
Flow rates are guidelines at 1 bar differential pressure with water at 20 C. Actual capacity varies with viscosity, micron rating, and particle load.
How It Is Built
Stainless steel pressure vessel
The SS304 or SS316L body provides durable service for water, compatible chemicals, coatings, food utilities, and industrial process liquids.
Single-bag and multi-bag formats
Single-bag housings are suitable for compact systems and moderate flow, while multi-bag vessels increase filter area and flow capacity for larger industrial lines.
Easy bag change-out
The bag basket and cover design support fast filter bag replacement, making this housing suitable for applications with higher solids loading or frequent maintenance.
Industries & Use Cases
Water Treatment
- *Process water filtration
- *Cooling water filtration
- *RO pretreatment support
- *Utility water polishing
Chemical & Coatings
- *Compatible chemical filtration
- *Coating bath filtration
- *Ink and resin cleanup
- *Batch liquid transfer protection
Food & Beverage
- *Ingredient water filtration
- *Beverage utility filtration
- *Edible liquid prefiltration
- *Plant circulation filtration
MADE TO YOUR SPECIFICATION
Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.
Submit Your Specification ->Documentation
Choose a bag filter housing when the process has higher dirt loading, larger particle capture needs, or requires fast and simple filter bag replacement.
You May Also Need
Request a Quote
or Sample
Describe your application, flow rate, and micron target. Our technical team responds within one business day with a recommendation and pricing.
