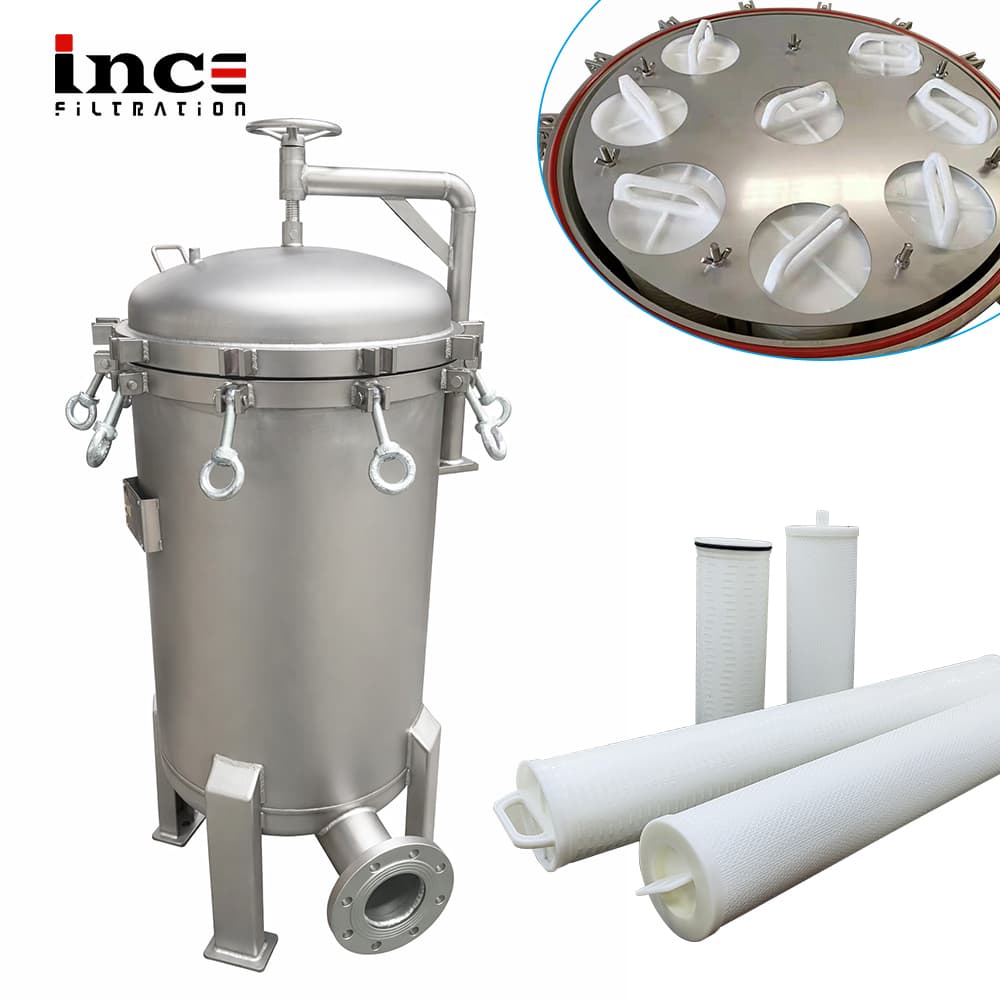

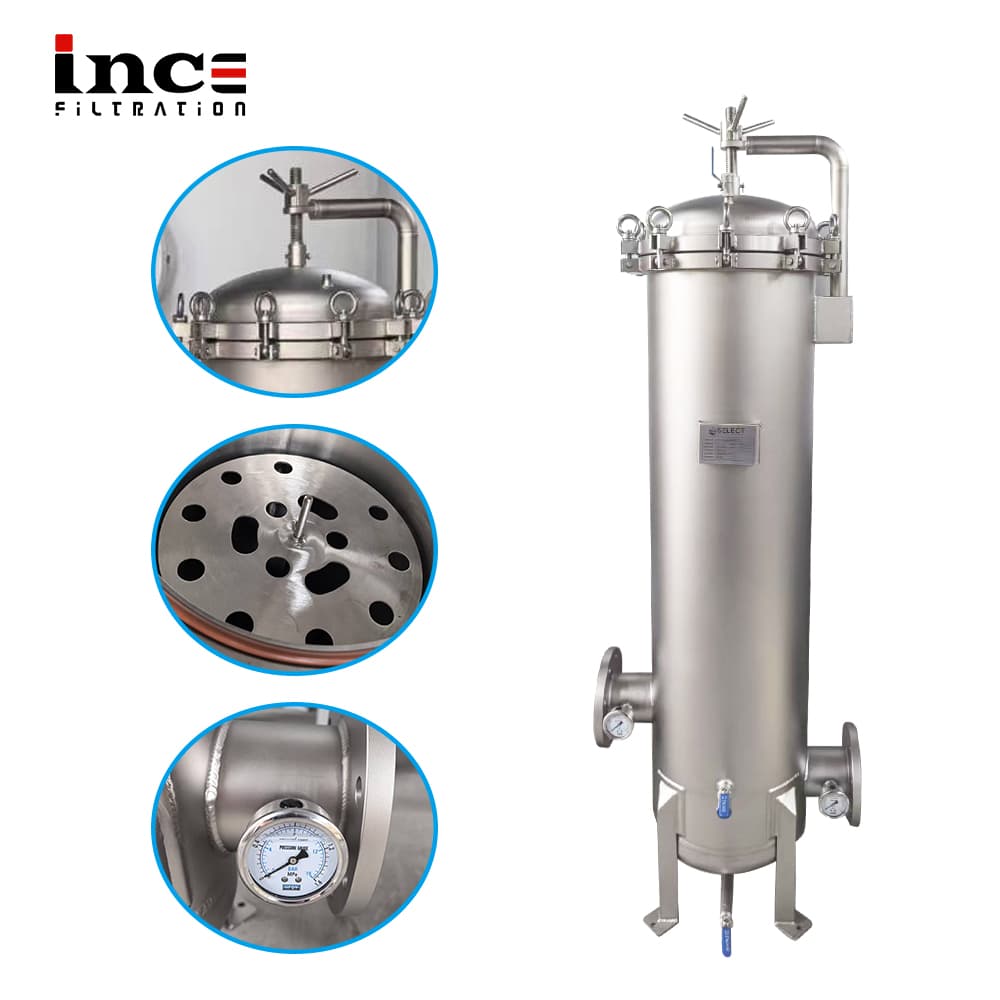

Stainless Steel Cartridge Filter Housing
The stainless steel cartridge filter housing is designed for liquid filtration systems that use depth, pleated, melt blown, string wound, or membrane filter cartridges. It is used for RO pretreatment, process water polishing, beverage utility filtration, chemical-compatible service, and industrial fine filtration where a durable SS304 or SS316L vessel is required.
Build Your Configuration
Full Spec Sheet
| Body Material | SS304 or SS316L stainless steel |
| Cartridge Compatibility | DOE, SOE, 222, 226, pleated, melt blown, string wound, and membrane cartridges by design |
| Seal Materials | EPDM, silicone, Viton, PTFE |
| Surface Finish | Industrial polish, sanitary finish, or project-specified finish |
| Accessories | Vent, drain, pressure gauge, legs, clamp, and custom nozzle options |
Dimensions & Flow Rates
| Size | Diameter | Length | Max Flow | Max dP |
|---|---|---|---|---|
| 10 inch | Contact us | For 10 inch cartridges | Contact us | Contact us |
| 20 inch | Contact us | For 20 inch cartridges | Contact us | Contact us |
| 30 inch | Contact us | For 30 inch cartridges | Contact us | Contact us |
| 40 inch | Contact us | For 40 inch cartridges | Contact us | Contact us |
Flow rates are guidelines at 1 bar differential pressure with water at 20 C. Actual capacity varies with viscosity, micron rating, and particle load.
How It Is Built
Cartridge-compatible vessel design
The housing can be configured for common cartridge lengths and end styles, including DOE, SOE, 222, and 226 cartridge interfaces.
Stainless steel durability
SS304 and SS316L body options support long service life in water treatment, process water, compatible chemicals, and sanitary-adjacent filtration systems.
Industries & Use Cases
Water Treatment
- *RO pretreatment
- *Process water polishing
- *Membrane protection
- *Utility water filtration
Food & Beverage
- *Beverage process water
- *Ingredient water filtration
- *Fine liquid polishing
- *Sanitary utility filtration
Chemical & Industrial
- *Compatible chemical filtration
- *Fine particle control
- *Pump and nozzle protection
- *Precision process liquid filtration
MADE TO YOUR SPECIFICATION
Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.
Submit Your Specification ->Documentation
Choose a cartridge housing when the system needs finer filtration, compact vessel design, defined cartridge compatibility, or compatibility with pleated, melt blown, string wound, or membrane cartridges.
You May Also Need
Request a Quote
or Sample
Describe your application, flow rate, and micron target. Our technical team responds within one business day with a recommendation and pricing.
