Silk Filter Mesh
Silk filter mesh is used for fine screening, specialty filtration, printing, food processing, and custom mesh fabrication. It can be supplied as rolls, sheets, discs, tubes, or drawing-based parts when the application requires a fine mesh structure and soft material handling.
Build Your Configuration
Full Spec Sheet
| Material | Natural silk mesh |
| Filtration Mechanism | Surface screening by mesh opening |
| Common Openings | 1, 2, 5, 10, 20, 25, 40, 50, 75, 100, 150, 200 um options by request |

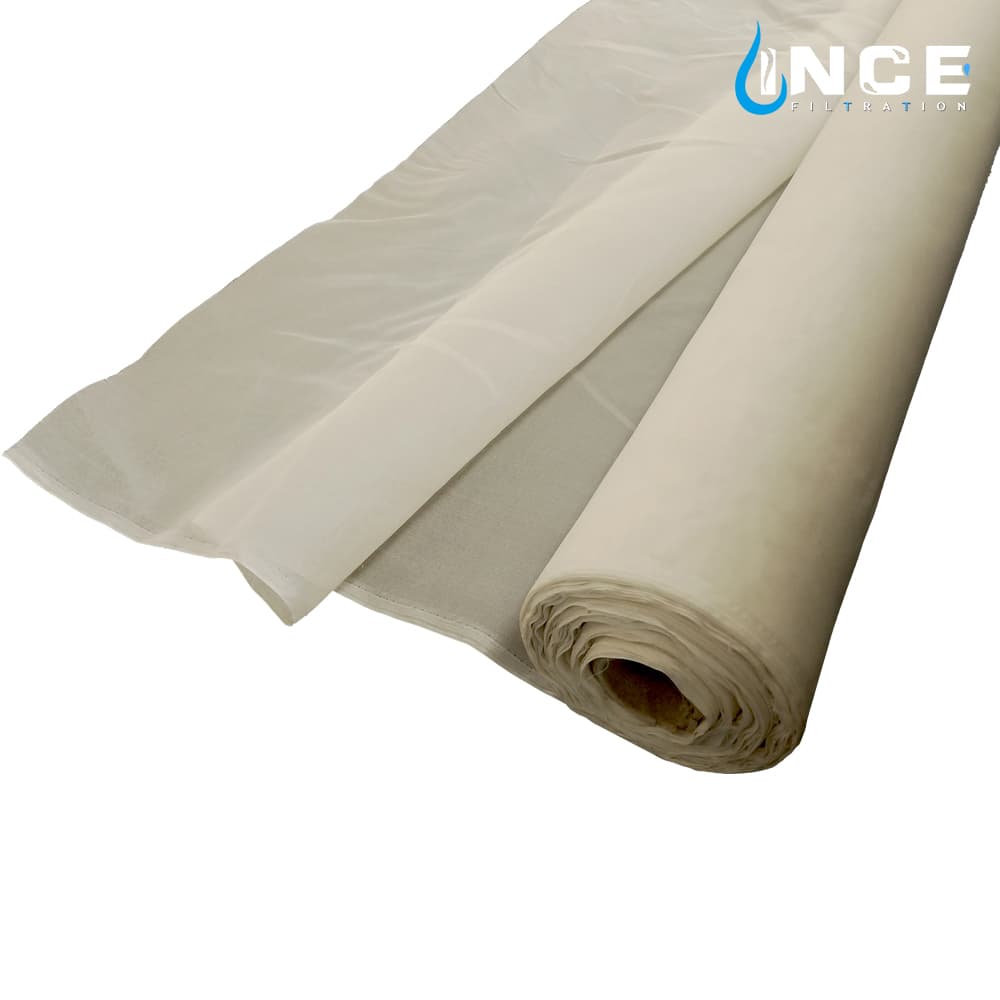

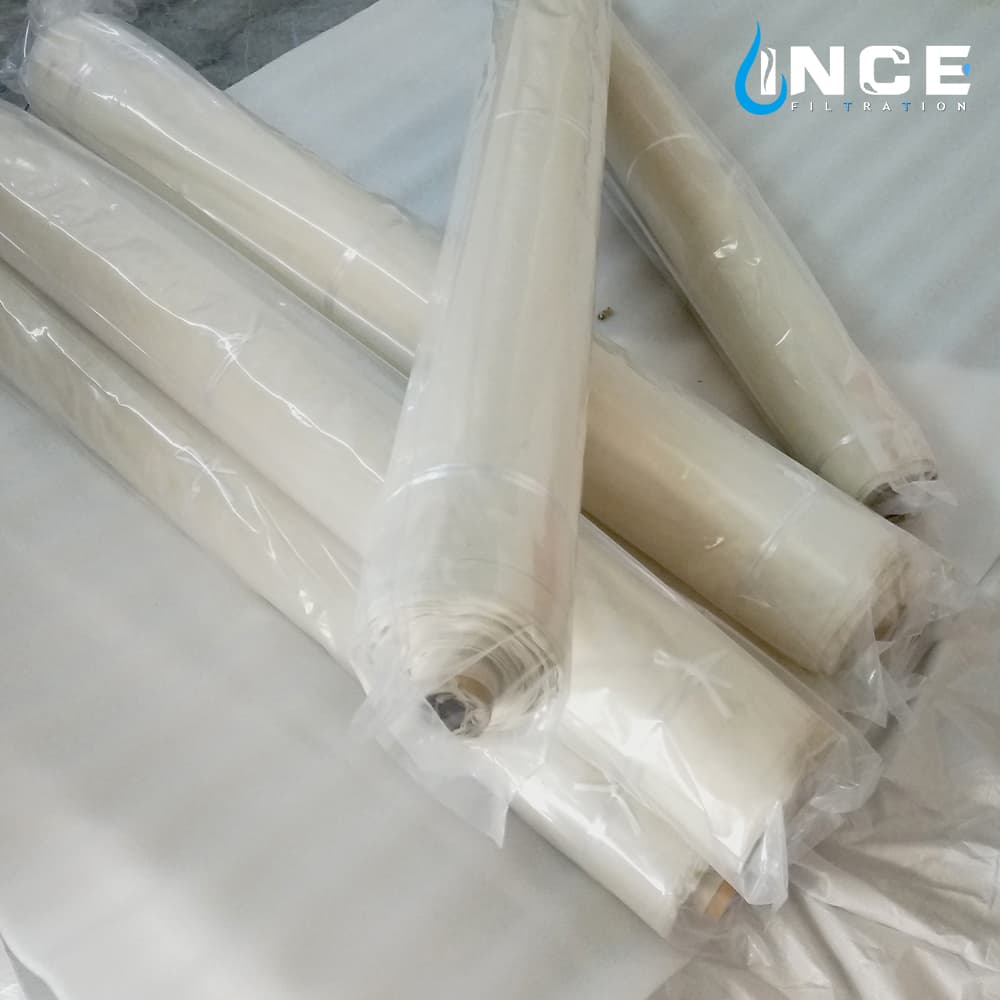

| Supply Format | Rolls, sheets, discs, tubes, sleeves, and custom mesh parts |
Silk Filter Mesh Specifications
| Fabric Number | Mesh Count / cm | Mesh Count / inch | Mesh Opening (um) | Open Area (%) |
|---|---|---|---|---|
| CB30 | 30 | 76 | 207 | 38 |
| CB33 | 33 | 84 | 189 | 39 |
| CB36 | 36 | 91 | 166 | 36 |
| CB39 | 39 | 99 | 153 | 35 |
| CB42 | 42 | 107 | 142 | 36 |
| CB46 | 46 | 117 | 128 | 34 |
| CB50 | 50 | 127 | 119 | 36 |
| CB54 | 54 | 137 | 109 | 35 |
| CB58 | 58 | 147 | 99 | 33 |
| CB62 | 62 | 157 | 95 | 34 |
| CP30 | 30 | 76 | 218 | 44 |
| CP33 | 33 | 84 | 199 | 43 |
| CP36 | 36 | 91 | 178 | 41 |
| CP39 | 39 | 99 | 162 | 40 |
| CP42 | 42 | 107 | 148 | 39 |
| CP46 | 46 | 117 | 136 | 39 |
| CP50 | 50 | 127 | 127 | 40 |
| CP54 | 54 | 137 | 119 | 41 |
| CP58 | 58 | 147 | 106 | 38 |
| CP62 | 62 | 157 | 104 | 42 |
| CQ4 | 4 | 10 | 2107 | 71 |
| CQ5 | 5 | 13 | 1632 | 67 |
| CQ6 | 6 | 15 | 1326 | 63 |
| CQ7 | 7 | 18 | 1118 | 61 |
| CQ8 | 8 | 20 | 956 | 58 |
| CQ9 | 9 | 23 | 833 | 56 |
| CQ10 | 10 | 25 | 737 | 54 |
| CQ11 | 11 | 28 | 629 | 53 |
| CQ12 | 12 | 30 | 577 | 51 |
| CQ13 | 13 | 33 | 533 | 49 |
| CQ14 | 14 | 36 | 495 | 48 |
| CQ15 | 15 | 38 | 457 | 47 |
| CQ16 | 16 | 41 | 428 | 46 |
| CQ17 | 17 | 43 | 400 | 46 |
| CQ18 | 18 | 46 | 377 | 46 |
| CQ19 | 19 | 48 | 351 | 44 |
| CQ20 | 20 | 51 | 330 | 44 |
| CQ21 | 21 | 53 | 312 | 43 |
| CQ22 | 22 | 56 | 296 | 43 |
| CQ23 | 23 | 58 | 279 | 41 |
| CQ24 | 24 | 61 | 265 | 40 |
| CQ25 | 25 | 64 | 253 | 40 |
| CQ26 | 26 | 66 | 246 | 41 |
| CQ27 | 27 | 69 | 237 | 41 |
| CQ28 | 28 | 71 | 226 | 40 |
| CQ29 | 29 | 74 | 222 | 41 |
Mesh specifications are converted from the silk filter mesh source sheet. Custom fabric number, mesh opening, roll width, and converted parts can be confirmed before quotation.
How It Is Built
Fine woven mesh structure
Silk mesh provides a fine woven surface for particle screening where soft handling and specialty process requirements matter.
Converted parts available
Roll mesh can be converted into sheets, discs, tubes, sleeves, and sewn assemblies according to the equipment or process layout.
Industries & Use Cases
Fine Screening
- *Small particle separation
- *Powder screening
- *Specialty process filtration
- *Mesh sample development
Printing & Coating
- *Screening support
- *Ink straining
- *Coating particle control
- *Fine mesh process protection
Food & Specialty Processes
- *Ingredient screening
- *Gentle liquid straining
- *Small-batch filtration
- *Custom mesh inserts
MADE TO YOUR SPECIFICATION
Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.
Submit Your Specification ->Fine micron requests can be reviewed against available mesh construction, flow requirement, and quantity. For very low micron ratings, confirm whether the process needs a woven mesh or another fine filtration media.
