FINE FILTRATIONLOW EXTRACTABLES222 / 226 OPTIONS

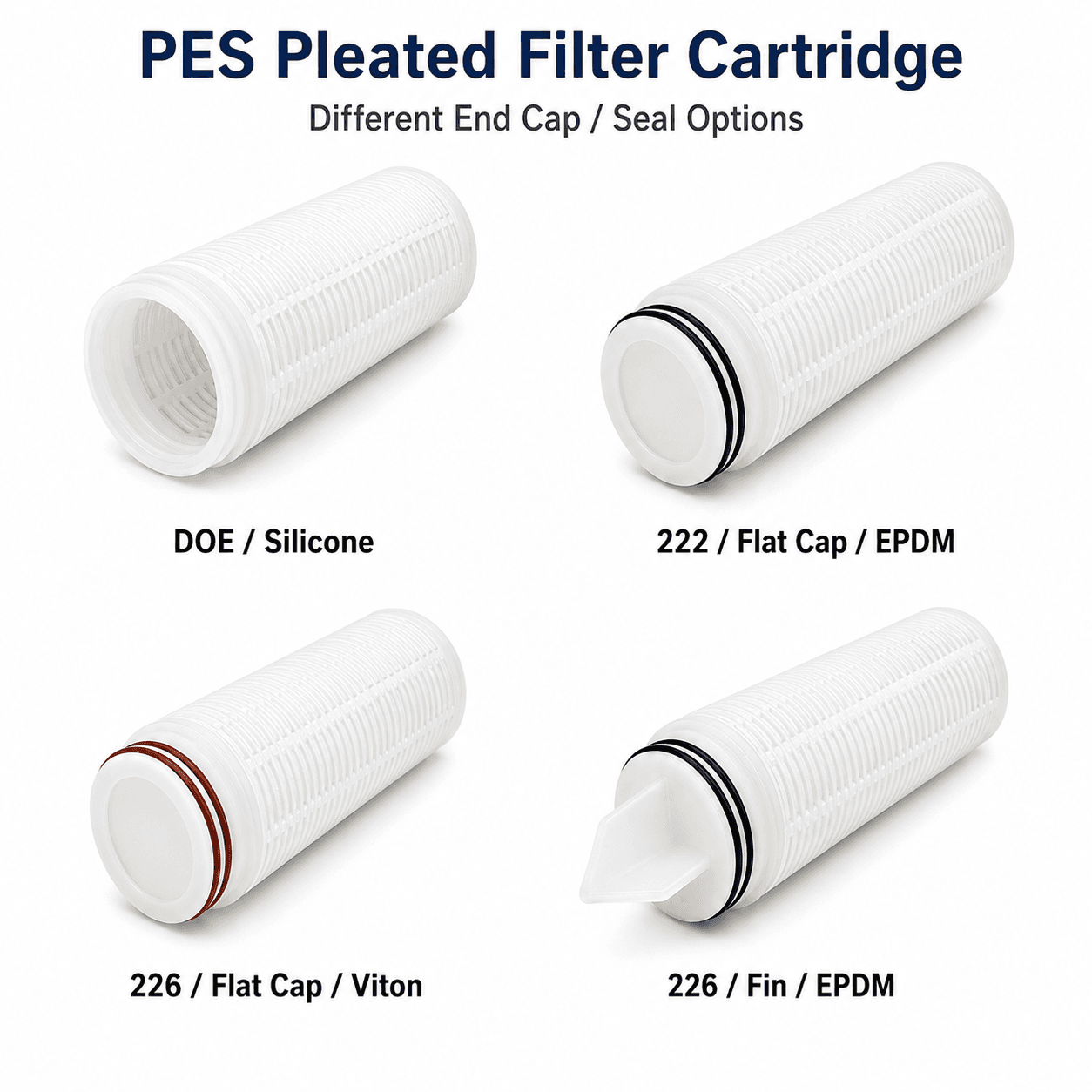

PES Membrane Cartridge Filter

PES Pleated Filter Cartridge

The PES pleated filter cartridge is designed for fine liquid filtration where stable throughput, low protein binding, and consistent particulate control matter. It is widely used in beverage processing, electronics-support water systems, and other process lines that need finer retention than standard general-purpose PP cartridges.

Filter Media

PES Membrane Pleated

Micron Range

0.1-20um

Lengths

10 / 20 / 30 / 40 inch

Connection Types

DOE / 222 / 226 / Fin

Configure & Quote ->FAQ

Key Specifications

Filter Media

PES Membrane Pleated

Micron Range

0.1-20um

Lengths

10 / 20 / 30 / 40 inch

Connection Types

DOE / 222 / 226 / Fin

Support Structure

PP Core & Drainage

Seal Options

Silicone / EPDM / Viton

Configuration Selector

Build Your Configuration

01Micron Rating

02Cartridge Length

03End Cap / Seal

04Quantity

pcs. No minimum for standard configurations.

Complete selection to see summary

Material:PES Membrane Pleated

Micron Rating:-

Cartridge Length:-

Dimensions:-

Flow Rate:-

End Cap / Seal:-

Quantity:100 pcs

Complete All Selections

Technical Specifications

Full Spec Sheet

Filter Media	Polyethersulfone membrane pleated media
Core	Polypropylene
Support / Drainage	Polypropylene
End Caps	DOE, 222, 226, and fin-end configurations
Seal Materials	Silicone, EPDM, Viton

Standard Sizes

Dimensions & Flow Rates

Size	Diameter	Length	Max Flow	Max dP
10 inch	2.7 inch / 69 mm	10 inch / 254 mm	Contact us	Contact us
20 inch	2.7 inch / 69 mm	20 inch / 508 mm	Contact us	Contact us
30 inch	2.7 inch / 69 mm	30 inch / 762 mm	Contact us	Contact us
40 inch	2.7 inch / 69 mm	40 inch / 1016 mm	Contact us	Contact us

Flow rates are guidelines at 1 bar differential pressure with water at 20 C. Actual capacity varies with viscosity, micron rating, and particle load.

Materials & Construction

How It Is Built

PES membrane pleated pack

The pleated PES membrane structure offers finer retention with practical flow performance for process streams that need better cleanliness control.

SOE and DOE flexibility

Common DOE, 222, 226, and fin-end options allow this PES page to cover the major housing interface combinations buyers usually request.

Applications

Industries & Use Cases

Food & Beverage

*Bottled water polishing
*Beverage process filtration
*Ingredient solution clarification
*Packaging line protection

Electronics

*High-purity utility water
*Rinse water filtration
*Particle control in wet processes
*Chemical make-up support

General Industry

*Fine liquid polishing
*Pre-final filtration
*Sensitive equipment protection
*Low-particle process transfer

Custom Options

MADE TO YOUR SPECIFICATION

Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.

Submit Your Specification ->

Finer retention programs

0.1, 0.22, and 0.45 um options help target higher cleanliness requirements than general prefilters.

Housing interface selection

DOE, 222, 226, and fin-end combinations are available based on the installed housing.

Seal material matching

Silicone, EPDM, and Viton can be selected according to fluid chemistry and cleaning regime.

Downloads

Documentation

FAQ

Common Questions

Can't find your answer? Send us a technical inquiry.

Ask a Question ->

PES is often selected when the process needs finer retention, stable flow, and a membrane-style filtration layer rather than a broader general-purpose PP prefilter.
