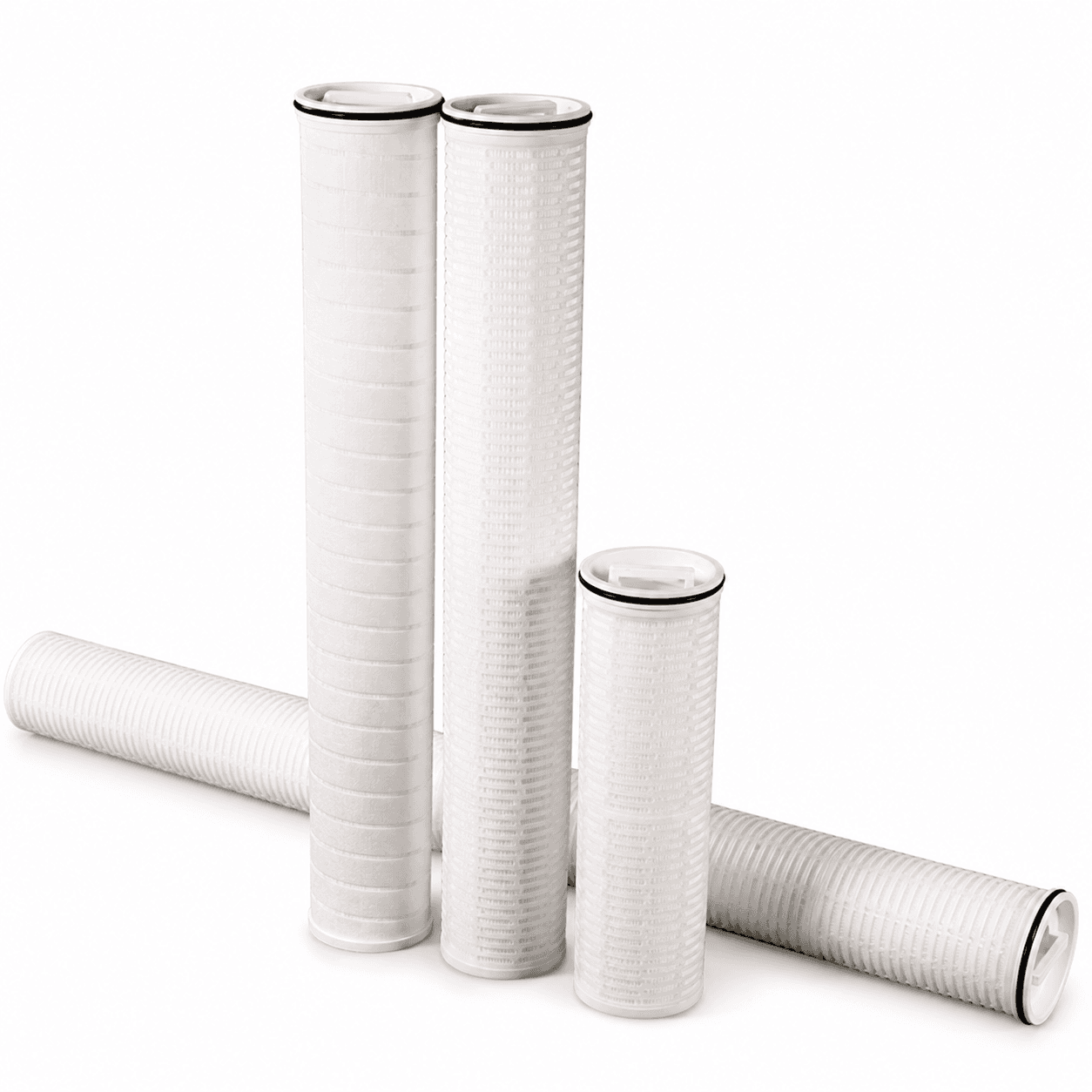

Replacement 3M high flow filter cartridge

High FlowPleated PP MediaReplacement Cartridge

High Flow Pleated Filter Cartridge

Replacement 3M High Flow Filter Cartridges

Replacement 3M high flow filter cartridges are designed for compatible high-flow filtration systems that require large filtration area, low pressure drop, and stable contaminant removal. The polypropylene pleated media and reinforced polypropylene construction support water treatment, process filtration, chemical processing, and other high-flow industrial applications.

Filter Media

Polypropylene Pleated

Micron Range

1-100um

Outside Diameter

6 inch / 152 mm

Lengths

20 / 40 / 60 inch

Configure & Quote ->FAQ

Key Specifications

Filter Media

Polypropylene Pleated

Micron Range

1-100um

Outside Diameter

6 inch / 152 mm

Lengths

20 / 40 / 60 inch

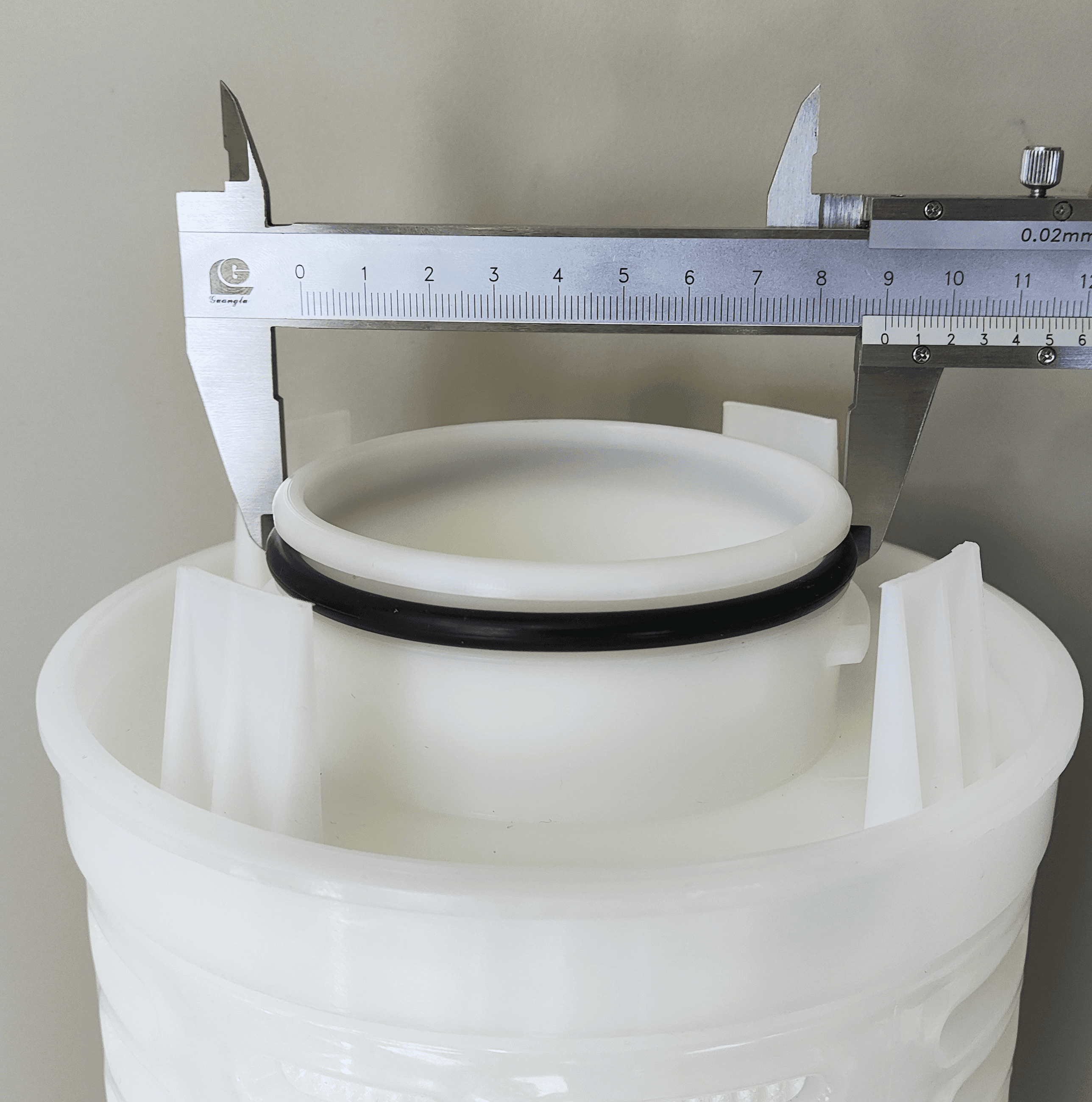

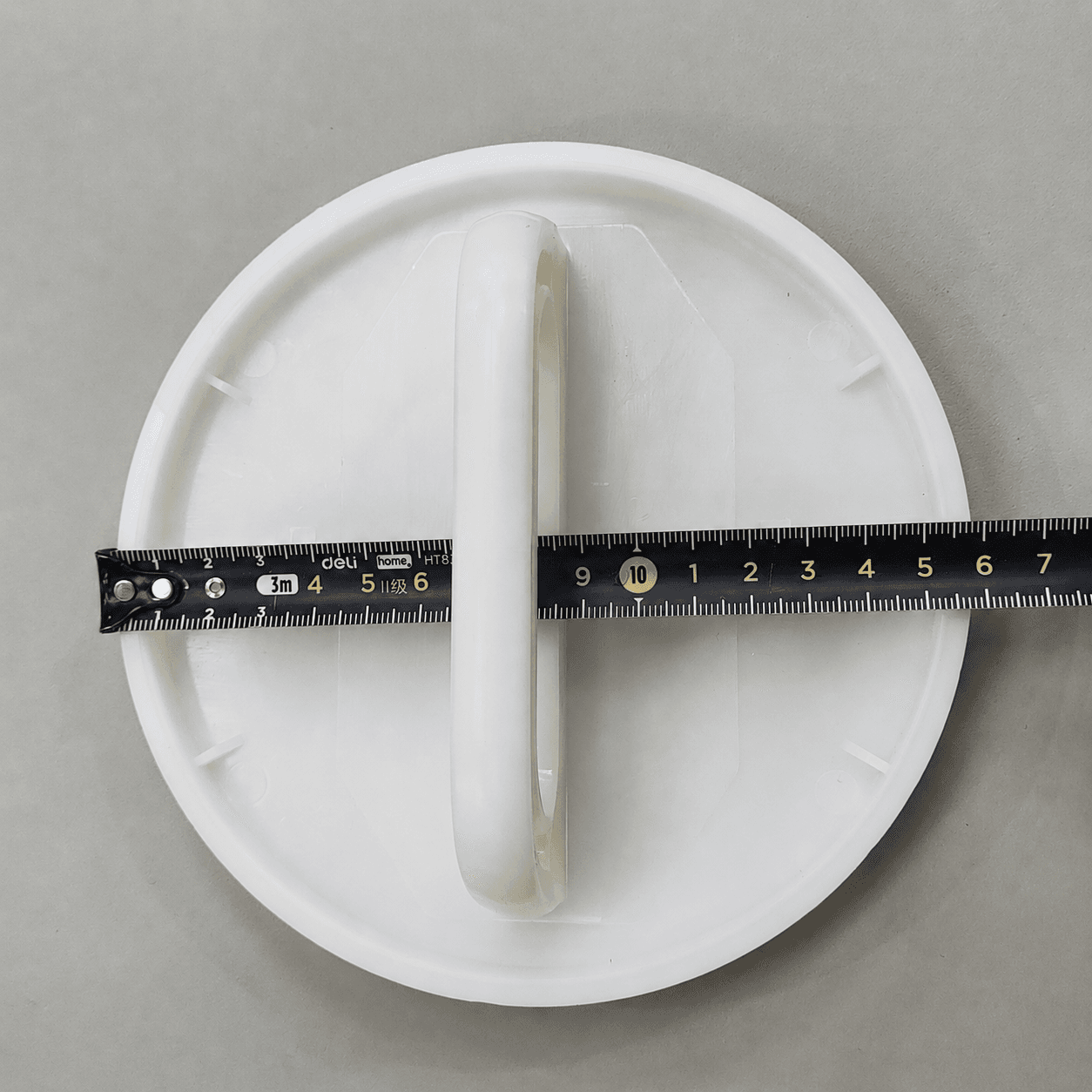

End Cap

Glass Fiber Reinforced PP

Support

Polypropylene

Configuration Selector

Build Your Configuration

01Micron Rating

02Cartridge Length

03End Cap Type

04Quantity

pcs. No minimum for standard configurations.

Complete selection to see summary

Material:Polypropylene Pleated

Micron Rating:-

Cartridge Length:-

Dimensions:-

Flow Rate:-

End Cap Type:-

Quantity:100 pcs

Complete All Selections

Technical Specifications

Full Spec Sheet

Filter Media	Polypropylene pleated media
Support / Drainage	Polypropylene
End Cap Material	Glass fiber reinforced polypropylene
Center Core	Polypropylene
Outer Support Cage	Polypropylene

Standard Sizes

Dimensions & Flow Rates

Size	Diameter	Length	Max Flow	Max dP
20 inch	6 inch / 152 mm	20 inch / 508 mm	Contact us	Contact us
40 inch	6 inch / 152 mm	40 inch / 1016 mm	Contact us	Contact us
60 inch	6 inch / 152 mm	60 inch / 1524 mm	Contact us	Contact us

Flow rates are guidelines at 1 bar differential pressure with water at 20 C. Actual capacity varies with viscosity, micron rating, and particle load.

Materials & Construction

How It Is Built

Large-diameter pleated design

The high-flow cartridge format provides a large filtration area in a single cartridge, helping reduce the number of cartridges required in compatible housings.

Polypropylene flow path

Polypropylene media, support layers, center core, and outer support cage provide broad compatibility for many water and process liquid applications.

Applications

Industries & Use Cases

Water Treatment

*RO prefiltration
*Process water filtration
*Cooling water filtration
*Utility water polishing

Chemical Processing

*Chemical solution filtration
*Solvent-compatible prefiltration
*Batch liquid polishing
*Catalyst fines reduction

Food & Beverage

*Process water filtration
*Ingredient water prefiltration
*Beverage line protection
*General utility filtration

Custom Options

MADE TO YOUR SPECIFICATION

Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.

Submit Your Specification ->

Micron rating selection

Multiple micron ratings are available to match target particle retention and pressure drop requirements.

Length selection

20 inch, 40 inch, and 60 inch cartridge lengths can be selected according to housing size and flow demand.

Downloads

Documentation

PDF

High-Flow Filter Cartridge Brochure420 KB>

FAQ

Common Questions

Can't find your answer? Send us a technical inquiry.

Ask a Question ->

This is a replacement high-flow filter cartridge for compatible filtration systems. Confirm cartridge dimensions, sealing style, and operating conditions before ordering.
