String Wound Filter Cartridge
The string wound filter cartridge is a depth filter made by winding filter yarn around a support core. It provides high dirt-holding capacity for sediment, rust, scale, and suspended solids in water treatment, oil filtration, chemical processing, plating, coatings, and general industrial liquid systems.
Build Your Configuration
Full Spec Sheet
| Filter Media | Polypropylene, cotton, or glass fiber yarn |
| Core Materials | Polypropylene, stainless steel, or tinned steel |
| Construction | Wound depth filtration structure |

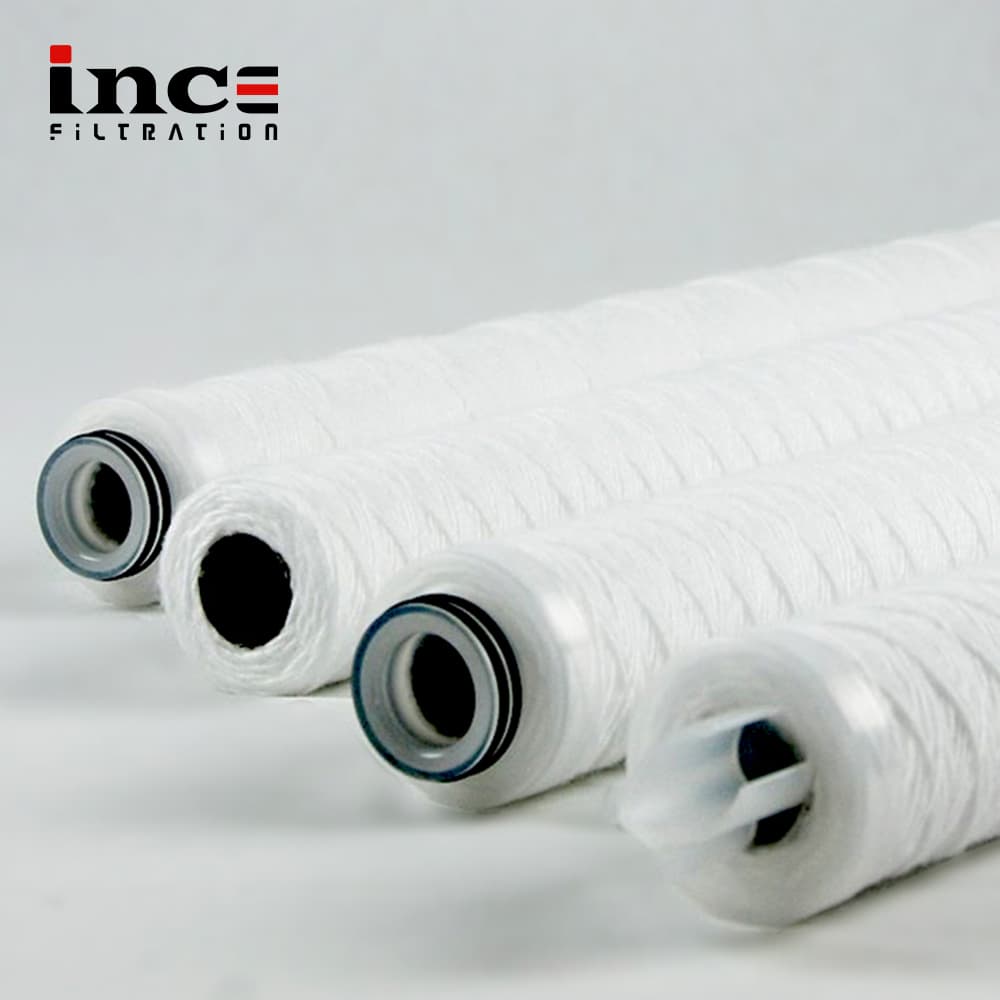

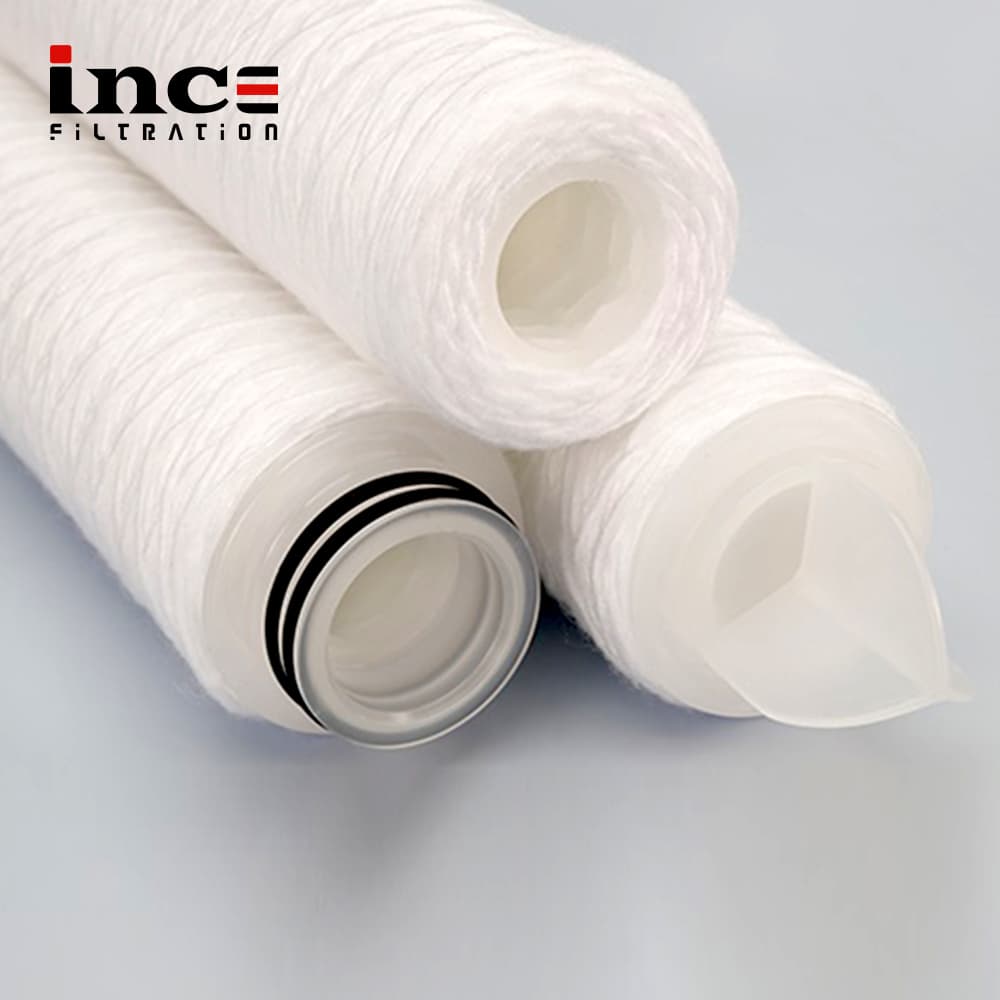

| End Styles | DOE, SOE, flat cap, fin, and custom cap options |
| Seal Materials | Silicone, EPDM, NBR, Viton by request |
Dimensions & Flow Rates
| Size | Diameter | Length | Max Flow | Max dP |
|---|---|---|---|---|
| 10 inch | 2.5 inch / 63 mm | 10 inch / 254 mm | Contact us | Contact us |
| 20 inch | 2.5 inch / 63 mm | 20 inch / 508 mm | Contact us | Contact us |
| 30 inch | 2.5 inch / 63 mm | 30 inch / 762 mm | Contact us | Contact us |
| 40 inch | 2.5 inch / 63 mm | 40 inch / 1016 mm | Contact us | Contact us |
Flow rates are guidelines at 1 bar differential pressure with water at 20 C. Actual capacity varies with viscosity, micron rating, and particle load.
How It Is Built

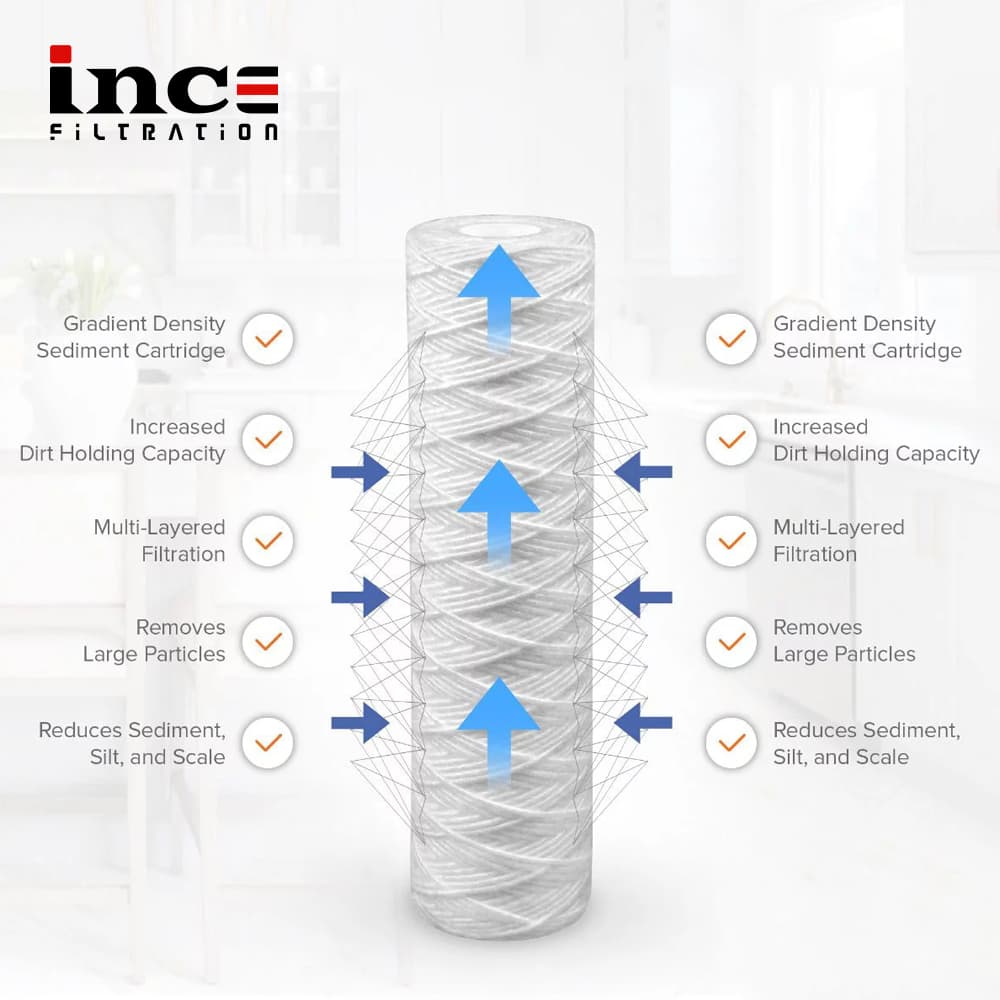

Wound depth filtration structure
The yarn winding pattern creates a depth filter path that captures particles throughout the cartridge body and supports high dirt-holding capacity.
Media and core matching
Yarn material and core material can be selected according to liquid chemistry, temperature, pressure, and mechanical strength requirements.
Industries & Use Cases
Water Treatment
- *RO pretreatment
- *Well water sediment removal
- *Cooling water cleanup
- *Process water prefiltration
Oil & Lubricants
- *Lubricating oil filtration
- *Hydraulic fluid prefiltration
- *Process oil cleanup
- *Particle reduction before equipment
Chemical & Coatings
- *Compatible chemical filtration
- *Plating bath filtration
- *Ink and resin cleanup
- *Coating bath protection
MADE TO YOUR SPECIFICATION
Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.
Submit Your Specification ->Documentation
Not at the beginning. PP yarn, cotton yarn, glass fiber yarn, and core materials are better treated as specifications under one string wound filter cartridge product page unless a material becomes a separate strategic product line.
Request a Quote
or Sample
Describe your application, flow rate, and micron target. Our technical team responds within one business day with a recommendation and pricing.
