GROOVED SURFACEHIGH DIRT HOLDINGPP DEPTH FILTER

Grooved PP Sediment Depth Filter

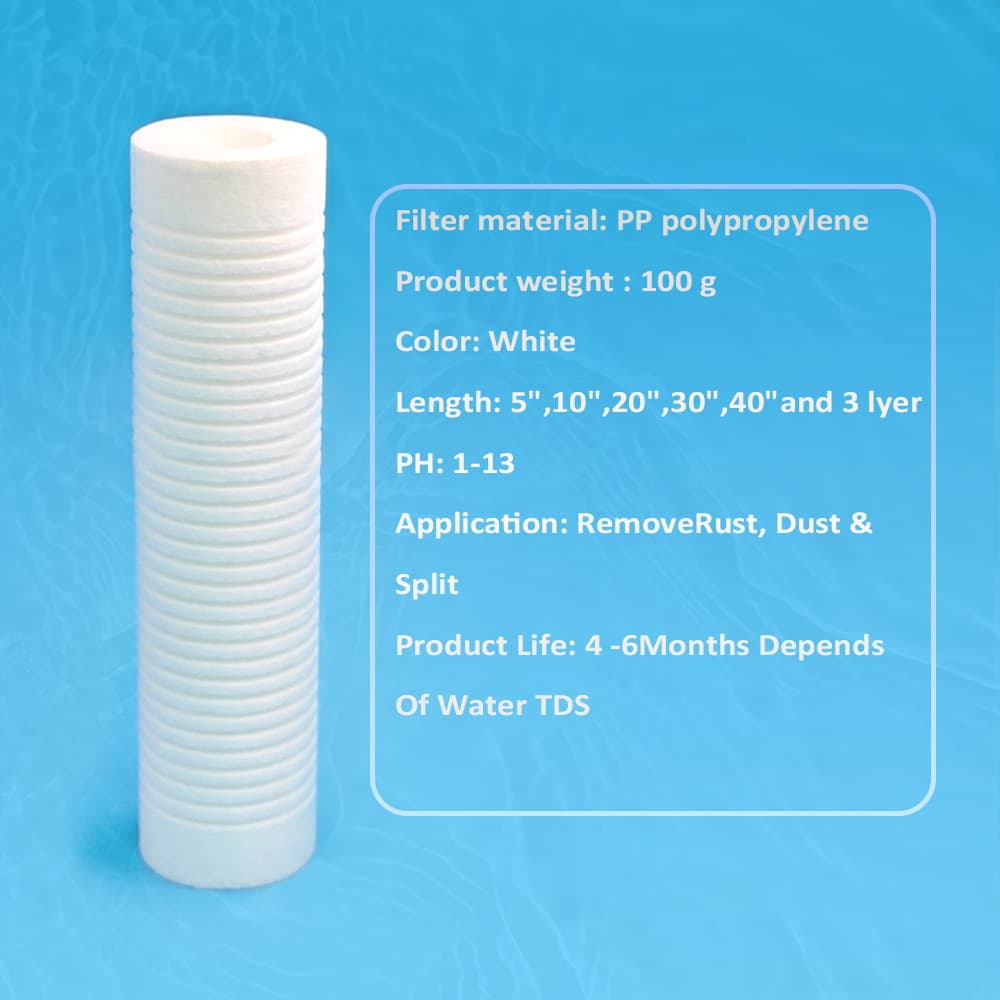

Grooved Melt Blown Filter Cartridge

The grooved melt blown filter cartridge uses a grooved outer surface to increase effective filtration area and improve dirt-loading performance in sediment-heavy applications. It is a practical upgrade from smooth PP melt blown cartridges when feed water contains higher suspended solids or replacement intervals need improvement.

Filter Media

Polypropylene Melt Blown

Micron Range

1-100um

Lengths

10 / 20 / 30 / 40 inch

Surface

Grooved outer surface

Configure & Quote ->FAQ

Key Specifications

Filter Media

Polypropylene Melt Blown

Micron Range

1-100um

Lengths

10 / 20 / 30 / 40 inch

Surface

Grooved outer surface

End Styles

DOE / SOE / Cap options

Primary Use

Higher-solids prefiltration

Configuration Selector

Build Your Configuration

01Micron Rating

02Cartridge Length

03End Style / Seal

04Quantity

pcs. No minimum for standard configurations.

Complete selection to see summary

Material:Polypropylene Melt Blown

Micron Rating:-

Cartridge Length:-

Dimensions:-

Flow Rate:-

End Style / Seal:-

Quantity:100 pcs

Complete All Selections

Technical Specifications

Full Spec Sheet

Filter Media	Thermally bonded polypropylene microfiber
Structure	Gradient depth filtration structure
Surface	Grooved outer surface for increased area
End Styles	DOE, SOE, flat cap, fin, and custom cap options
Seal Materials	Silicone, EPDM, NBR, Viton by request

Standard Sizes

Dimensions & Flow Rates

Size	Diameter	Length	Max Flow	Max dP
10 inch	2.5 inch / 63 mm	10 inch / 254 mm	Contact us	Contact us
20 inch	2.5 inch / 63 mm	20 inch / 508 mm	Contact us	Contact us
30 inch	2.5 inch / 63 mm	30 inch / 762 mm	Contact us	Contact us
40 inch	2.5 inch / 63 mm	40 inch / 1016 mm	Contact us	Contact us

Flow rates are guidelines at 1 bar differential pressure with water at 20 C. Actual capacity varies with viscosity, micron rating, and particle load.

Materials & Construction

How It Is Built

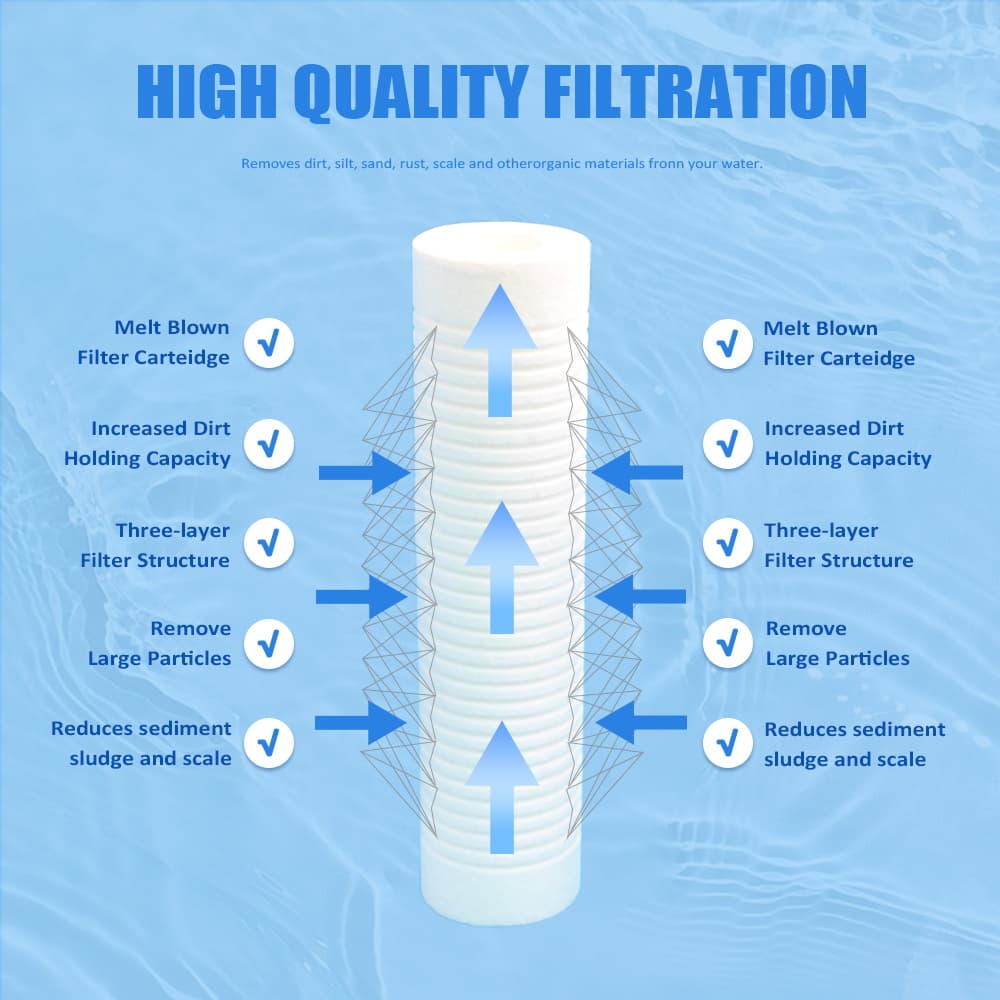

Grooved outer profile

The grooved surface exposes more filtration area to the incoming liquid and can help delay surface plugging in higher sediment loads.

Depth filtration body

The polypropylene melt blown body captures particles through the depth of the cartridge for economical prefiltration.

Applications

Industries & Use Cases

Water Treatment

*High-sediment feed water
*RO pretreatment
*Well water prefiltration
*Municipal water polishing

Industrial Utilities

*Cooling water filtration
*Pump protection
*Pre-bag filtration
*General equipment protection

Coatings & Chemicals

*Compatible chemical prefiltration
*Coating bath cleanup
*Particle reduction
*Batch transfer protection

Custom Options

MADE TO YOUR SPECIFICATION

Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.

Submit Your Specification ->

Groove depth and format

Groove design can be matched to standard product programs and OEM housing requirements.

Micron and length selection

1-100 um ratings and 10-40 inch lengths are available for staged filtration systems.

OEM packaging

Private label cartons, model coding, and export packaging can be supplied for distributors.

Downloads

Documentation

FAQ

Common Questions

Can't find your answer? Send us a technical inquiry.

Ask a Question ->

Choose grooved cartridges when the liquid has higher sediment loading or when you want more effective surface area than a smooth melt blown cartridge.
