Orange Peel Surface PP Sediment Filter

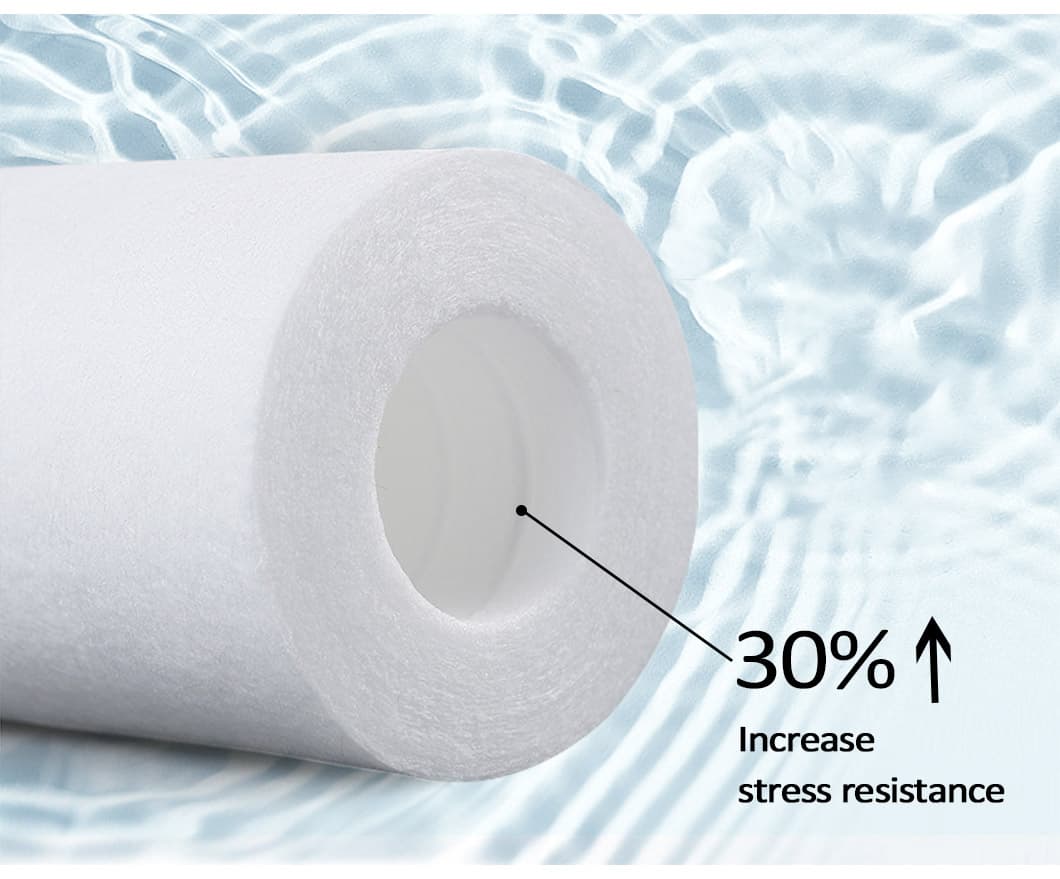

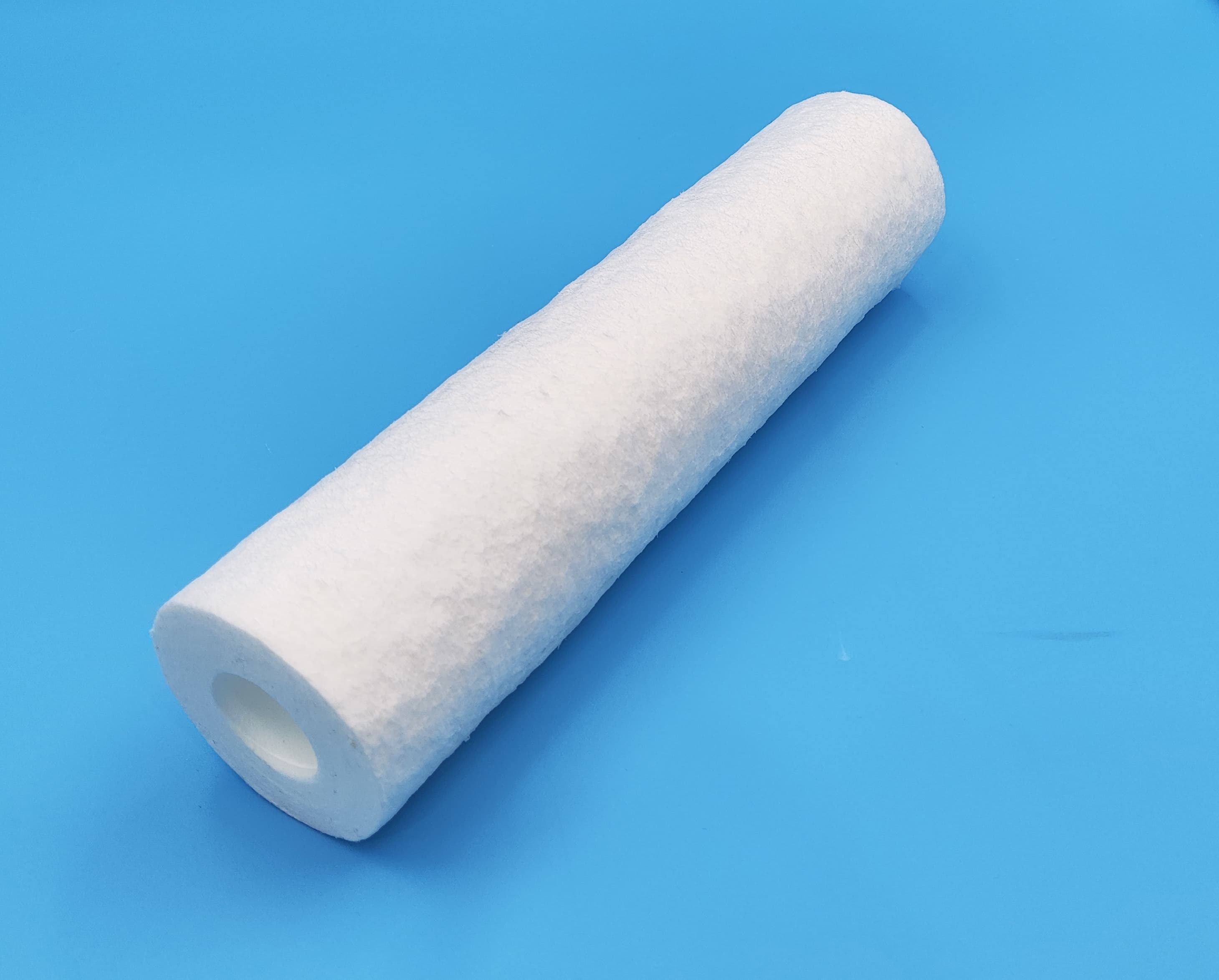

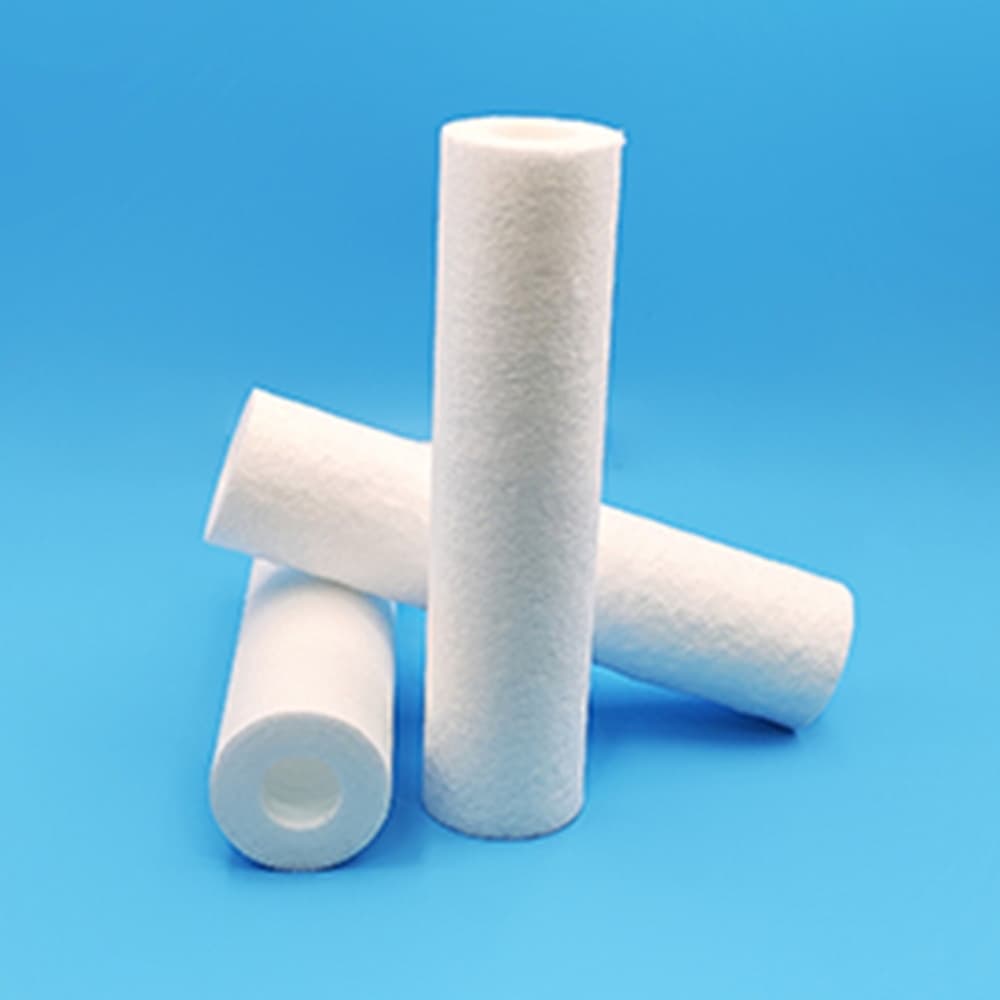

Orange Peel Melt Blown Filter Cartridge

The orange peel melt blown filter cartridge is a polypropylene depth filter with a textured outer surface for sediment removal and disposable prefiltration. It is suitable for water treatment, RO pretreatment, general process liquids, and private-label filter cartridge programs that require this recognizable surface style.

Filter Media

Polypropylene Melt Blown

Micron Range

1-100um

Lengths

10 / 20 / 30 / 40 inch

Surface

Orange peel texture

Configure & Quote ->FAQ

Key Specifications

Filter Media

Polypropylene Melt Blown

Micron Range

1-100um

Lengths

10 / 20 / 30 / 40 inch

Surface

Orange peel texture

End Styles

DOE / SOE / Cap options

Supply Type

Standard / OEM / Private Label

Configuration Selector

Build Your Configuration

01Micron Rating

02Cartridge Length

03End Style / Seal

04Quantity

pcs. No minimum for standard configurations.

Complete selection to see summary

Material:Polypropylene Melt Blown

Micron Rating:-

Cartridge Length:-

Dimensions:-

Flow Rate:-

End Style / Seal:-

Quantity:100 pcs

Complete All Selections

Technical Specifications

Full Spec Sheet

Filter Media	Thermally bonded polypropylene microfiber
Structure	Gradient depth filtration structure
Surface	Orange peel textured surface
End Styles	DOE, SOE, flat cap, fin, and custom cap options
Seal Materials	Silicone, EPDM, NBR, Viton by request

Standard Sizes

Dimensions & Flow Rates

Size	Diameter	Length	Max Flow	Max dP
10 inch	2.5 inch / 63 mm	10 inch / 254 mm	Contact us	Contact us
20 inch	2.5 inch / 63 mm	20 inch / 508 mm	Contact us	Contact us
30 inch	2.5 inch / 63 mm	30 inch / 762 mm	Contact us	Contact us
40 inch	2.5 inch / 63 mm	40 inch / 1016 mm	Contact us	Contact us

Flow rates are guidelines at 1 bar differential pressure with water at 20 C. Actual capacity varies with viscosity, micron rating, and particle load.

Materials & Construction

How It Is Built

Orange peel surface texture

The textured outer surface provides a recognizable cartridge style for replacement programs and water filtration product lines.

Disposable PP depth media

The polypropylene melt blown body captures sediment through the cartridge depth and supports economical regular replacement.

Applications

Industries & Use Cases

Water Treatment

*Sediment removal
*RO pretreatment
*Commercial water systems
*Point-of-use filtration support

Replacement Filter Programs

*Private-label cartridge supply
*Distributor product lines
*Standard housing replacements
*Export carton programs

General Prefiltration

*Process water filtration
*Pump and valve protection
*Particle reduction
*Disposable prefilter stage

Custom Options

MADE TO YOUR SPECIFICATION

Customize micron rating, dimensions, ring style, seam construction, and other details. MOQ starts from 100 pcs per SKU.

Submit Your Specification ->

Surface format supply

Orange peel surface cartridges can be supplied for replacement programs that require this visual and functional format.

Standard or custom dimensions

10-40 inch cartridges and project-specific sizes can be produced to match housing requirements.

Private label packaging

Custom labels, cartons, model codes, and packaging layouts are available for brand and distributor programs.

Downloads

Documentation

FAQ

Common Questions

Can't find your answer? Send us a technical inquiry.

Ask a Question ->

It is a PP melt blown depth filter with an orange peel-style textured surface, commonly used for sediment removal and replacement water filter programs.
